ADR3440ARJZ-R7 - Analog Devices

Description: Micropower, High Accuracy Voltage References

Download ADR3440ARJZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

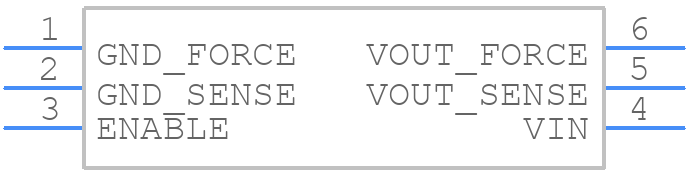

ADR3440ARJZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR3440ARJZ-R7 - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - RJ-6 (SOT23)
click to zoom
3D Models
ADR3440ARJZ-R7 - Analog Devices - 3D model - SOT23 (6-Pin) - RJ-6 (SOT23)
click to zoom

ADR3440ARJZ-R7 Details

  • Manufacturer Part Number:

    ADR3440ARJZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    RJ-6

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    4.1 V

  • Output Voltage-Min:

    4.0919 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.45 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.3 V

  • Supply Voltage-Nom (Vsup):

    4.6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temp Coef of Voltage-Max:

    8 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.1%

  • Width:

    1.6 mm

ADR3440ARJZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR3440ARJZ-R7 involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The ADR3440ARJZ-R7 is a calibrated device, but it may require additional calibration for specific applications. Engineers can use the device's internal calibration mode or use external calibration techniques such as system-level calibration or self-calibration methods.
  • The ADR3440ARJZ-R7 has a maximum junction temperature of 150°C. To ensure reliable operation, engineers should ensure good thermal conductivity between the device and the PCB, use thermal vias, and consider heat sinks or thermal interfaces if necessary.
  • To minimize EMI and EMC issues, engineers should use proper shielding, filtering, and grounding techniques. They should also ensure that the device is placed in a shielded enclosure and that all cables and connectors are properly shielded.
  • The ADR3440ARJZ-R7 requires a specific power sequencing to ensure proper operation. Engineers should follow the recommended power-up and power-down sequences outlined in the datasheet, and ensure that the device is powered up and down slowly to prevent damage.
