![ADR363AUJZ-REEL7 - Analog Devices - 3D model - SOT23 (5-Pin) - Lead Thin Small Outline Transistor Package [TSOT] (UJ-5)](https://media.componentsearchengine.com/images/available.svg?v=0.77.3)
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ADR363AUJZ-REEL7
- Part Number ADR363AUJZ-REEL7
- Manufacturer Analog Devices
- Pin Count 5
- Part Category Integrated Circuit
- Package Category SOT23 (5-Pin)
- Footprint Name SOT23 (5-Pin) - Lead Thin Small Outline Transistor Package [TSOT] (UJ-5)
- Released Date Jan 11, 2017
- Last Modified Date Nov 15, 2024 1:35 PM UTC
- Pinout / Pin List Click Here (Member Only)
ADR363AUJZ-REEL7 Details
-
Manufacturer Part Number:
ADR363AUJZ-REEL7
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
TSOT
-
Package Description:
ROHS COMPLIANT, MO-193AB, TSOT-5
-
Pin Count:
5
-
Manufacturer Package Code:
UJ-5
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
ADR363AUJZ-REEL7 Frequently Asked Questions (FAQs)
-
A good PCB layout for the ADR363AUJZ-REEL7 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the distance between the voltage regulator and the power plane. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
-
To ensure stability, it's essential to follow the recommended capacitor values and types in the datasheet. Additionally, the output capacitor should be placed as close as possible to the output pin, and the input capacitor should be placed as close as possible to the input pin. Also, make sure the PCB layout is well-designed, and the power supply is clean and stable.
-
The ADR363AUJZ-REEL7 is rated for operation from -40°C to +125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's essential to consider the thermal characteristics of the device and the system to ensure reliable operation.
-
The ADR363AUJZ-REEL7 is a commercial-grade device, and it's not specifically designed for high-reliability or aerospace applications. However, Analog Devices Inc. offers other versions of the device that are specifically designed for high-reliability applications, such as the ADR363AQJZ-REEL7, which is qualified to the Automotive Electronics Council (AEC) Q100 standard.
-
To troubleshoot issues with the ADR363AUJZ-REEL7, start by checking the power supply voltage, input voltage, and output voltage. Verify that the input and output capacitors are properly connected and meet the recommended values. Also, check the PCB layout for any signs of damage or contamination. If the issue persists, consult the datasheet and application notes for guidance, or contact Analog Devices Inc. support for further assistance.
Trust Checks
Community Provided
System Verified
Community Approved
ADR363AUJZ-REEL7 Overview

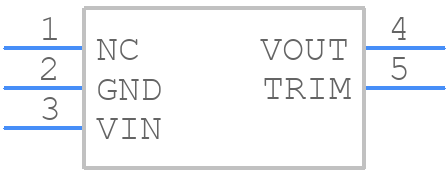

Use the download button to access the ADR363AUJZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR36,
or try a keyword search, such as Voltage References
