ADR3650ARMZ - Analog Devices

Description: Voltage References 5.0V Output 16V Input Precision VREF

Download ADR3650ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

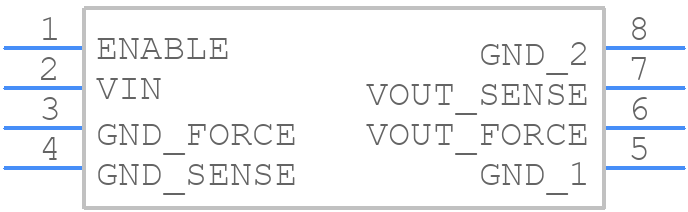

ADR3650ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR3650ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
ADR3650ARMZ - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

ADR3650ARMZ Details

  • Manufacturer Part Number:

    ADR3650ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    5.004 V

  • Output Voltage-Min:

    4.996 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    6 ppm/°C

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.08%

  • Width:

    3 mm

ADR3650ARMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR3650ARMZ involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing noise coupling between the input and output stages. A 4-layer PCB with a dedicated analog ground layer is recommended.
  • To ensure accurate voltage reference output, it's essential to decouple the input pin (VIN) with a 10uF capacitor, use a low-noise power supply, and keep the ambient temperature within the specified range (0°C to 125°C). Additionally, ensure that the output pin (VOUT) is not loaded with high currents.
  • The ADR3650ARMZ can supply up to 10mA of output current. However, it's recommended to limit the output current to 5mA or less to maintain accuracy and prevent overheating.
  • The ADR3650ARMZ has a thermal shutdown feature that activates when the junction temperature exceeds 150°C. To prevent overheating, ensure good airflow, use a heat sink if necessary, and avoid high-power dissipation in adjacent components.
  • Yes, the ADR3650ARMZ is qualified for automotive and high-reliability applications. It meets the AEC-Q100 standard and is designed to operate in harsh environments. However, it's essential to follow the recommended operating conditions and design guidelines to ensure reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR3650ARMZ Overview

Use the download button to access the ADR3650ARMZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR36, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
