Please enter a minimum 3 letters or numbers
Technical Content
Part Image

ADR423ARMZ-REEL7 - Analog Devices

Description: Voltage References 3.0 Voltage Reference

Download ADR423ARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

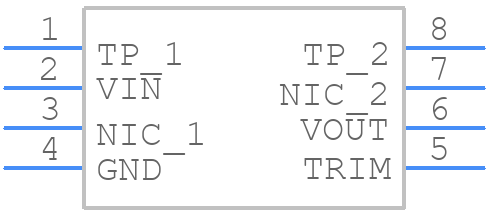

ADR423ARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR423ARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-08-2022
click to zoom
3D Models
ADR423ARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-08-2022
click to zoom

ADR423ARMZ-REEL7 Details

  • Manufacturer Part Number:

    ADR423ARMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    ROHS COMPLIANT, MO-187AA, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE CAN BE ADJUSTED OVER A +/-0.5% RANGE USING TRIM PIN

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.004 V

  • Output Voltage-Min:

    2.996 V

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.13%

  • Width:

    3 mm

ADR423ARMZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout in the datasheet, which includes guidelines for component placement, routing, and thermal management. Additionally, the company offers a layout checklist and a PCB layout example in the device's evaluation board documentation.
  • Analog Devices provides a detailed application note (AN-1074) that covers biasing and configuration guidelines for the ADR423ARMZ-REEL7. The note includes information on input and output voltage ranges, current limits, and capacitor selection.
  • The ADR423ARMZ-REEL7 has a maximum junction temperature of 150°C. To ensure reliable operation, it's essential to follow proper thermal management practices, such as using a heat sink, minimizing thermal resistance, and avoiding thermal gradients. Analog Devices provides thermal management guidelines in the datasheet and application notes.
  • The ADR423ARMZ-REEL7 is a commercial-grade device, but Analog Devices offers a range of high-reliability and aerospace-qualified devices, including the ADR423BARMZ-REEL7, which is qualified to MIL-PRF-38535. Engineers should consult with Analog Devices' sales team or application engineers to determine the best device for their specific high-reliability or aerospace application.
  • Analog Devices provides a troubleshooting guide in the datasheet and application notes, which covers common issues and errors, along with recommended solutions and debugging techniques. Engineers can also consult with Analog Devices' application engineers or technical support team for assistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR423ARMZ-REEL7 Overview

Use the download button to access the ADR423ARMZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR42, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to ADR423ARMZ-REEL7

Showing 0 results

Part Image

← Prev Next →
About Us Contact Us Terms of Service Do not sell or share my personal information Privacy Policy Digital Services Act Library Loader Twitter LinkedIn

All content Copyright © 2020, Supplyframe.com. All rights reserved. Back to top ↑

ADR423ARMZ-REEL7 Alternates

Showing results

Image Part Number Model
Part Image ADR423ARMZ Analog Devices Inc

Three Terminal Voltage Reference, 1 Output, 3V, Trim/Adjustable, PDSO8
