ADR425ARMZ - Analog Devices

Description: ADR425A 5.0V voltage reference MSOP

Download ADR425ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

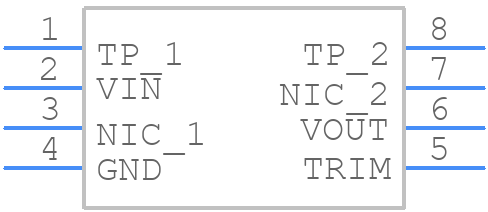

Symbol
