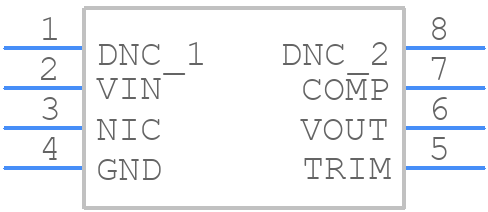

ADR430ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR430ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (RM-8)
click to zoom
3D Models
ADR430ARMZ - Analog Devices - 3D model - Small Outline Packages - (RM-8)
click to zoom

ADR430ARMZ Details

  • Manufacturer Part Number:

    ADR430ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE CAN BE ADJUSTED OVER A 0.5 PERCENT RANGE USING TRIM PIN

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    2.051 V

  • Output Voltage-Min:

    2.045 V

  • Output Voltage-Nom:

    2.048 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.15%

  • Width:

    3 mm

ADR430ARMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR430ARMZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the analog-to-digital converter (ADC) or digital-to-analog converter (DAC) it is driving. Additionally, using a low-ESR capacitor for decoupling and placing it close to the device can help reduce noise.
  • The ADR430ARMZ is a precision voltage reference, and calibration is not typically required. However, if you need to ensure the output voltage is within a specific tolerance, you can use an external trim pin to adjust the output voltage. Consult the datasheet for specific calibration procedures.
  • The ADR430ARMZ can supply up to 10mA of current. However, if the output current exceeds 5mA, the output voltage may droop, affecting the overall accuracy of the reference voltage. It's essential to ensure the output current is within the recommended range to maintain the specified accuracy.
  • The ADR430ARMZ has a temperature coefficient of ±1 ppm/°C, which means the output voltage may vary by ±1 ppm for every 1°C change in temperature. This is relatively low and ensures the device maintains its accuracy over a wide temperature range.
  • While the ADR430ARMZ can be used as a voltage regulator, it's not recommended due to its limited current capability and lack of short-circuit protection. The device is designed as a precision voltage reference, and using it as a voltage regulator may compromise its accuracy and reliability.
