ADR430ARZ - Analog Devices

Description: V-Ref Precision 2.048V 30mA 8-Pin SOIC

Download ADR430ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

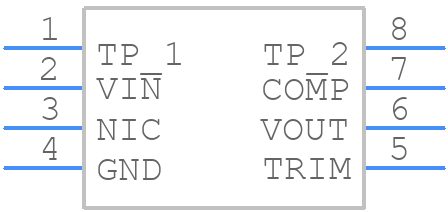

ADR430ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR430ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - - [SOIC_N]-
click to zoom
3D Models
ADR430ARZ - Analog Devices - 3D model - Small Outline Packages - - [SOIC_N]-
click to zoom

ADR430ARZ Details

  • Manufacturer Part Number:

    ADR430ARZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE CAN BE ADJUSTED OVER A 0.5 PERCENT RANGE USING TRIM PIN

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    2.051 V

  • Output Voltage-Min:

    2.045 V

  • Output Voltage-Nom:

    2.048 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.1 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.15%

  • Width:

    3.9 mm

ADR430ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR430ARZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for decoupling and to keep the analog and digital grounds separate.
  • To ensure the ADR430ARZ operates within its specified temperature range, it's essential to provide adequate heat sinking, especially in high-power applications. A thermal pad or heat sink can be used to dissipate heat, and the device should be placed in a well-ventilated area to prevent overheating.
  • The recommended input voltage range for the ADR430ARZ is 4.5V to 15V. The output voltage is regulated to 4.096V ± 1% when the input voltage is within this range. Operating outside this range may affect the output voltage accuracy and stability.
  • To protect the ADR430ARZ from overvoltage and undervoltage conditions, it's recommended to use a voltage regulator with overvoltage protection (OVP) and undervoltage lockout (UVLO) features. Additionally, a transient voltage suppressor (TVS) can be used to protect the device from voltage spikes and surges.
  • The typical startup time for the ADR430ARZ is around 100 ms. This startup time should be considered in system design, especially in applications where a fast startup is critical. A power-on reset (POR) circuit can be used to ensure the system is properly initialized after power-up.
