ADR431TRZ-EP - Analog Devices

Description: Analog Devices ADR431TRZ-EP, Series Voltage Reference 2.5V, 0.04% 18 V max., 8-Pin SOIC

Download ADR431TRZ-EP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

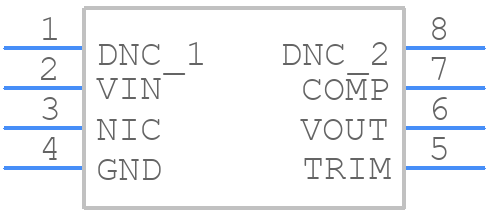

ADR431TRZ-EP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR431TRZ-EP - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Standard Small Outline Package [SOIC] Narrow Body (R-8)
click to zoom
3D Models
ADR431TRZ-EP - Analog Devices - 3D model - Small Outline Packages - 8-Lead Standard Small Outline Package [SOIC] Narrow Body (R-8)
click to zoom

ADR431TRZ-EP Details

  • Manufacturer Part Number:

    ADR431TRZ-EP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Voltage-Max:

    2.501 V

  • Output Voltage-Min:

    2.499 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    5 ppm/°C

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.04%

  • Width:

    3.9 mm

ADR431TRZ-EP Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR431TRZ-EP involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated analog ground plane can help reduce noise and improve performance.
  • To ensure proper biasing, connect the VREF pin to a quiet, low-impedance voltage source, and decouple the input pins with high-quality capacitors. Also, ensure the output is properly terminated with a load resistor and capacitor to prevent oscillations.
  • The recommended input voltage range for the ADR431TRZ-EP is between 2.5V and 5.5V. Operating outside this range may affect the device's accuracy and stability.
  • To handle thermal considerations, ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate in high-temperature environments. Also, follow the recommended thermal design guidelines in the datasheet.
  • The ADR431TRZ-EP has built-in ESD protection, but it's still important to follow proper ESD handling procedures during assembly and testing. Use ESD-safe materials, and ensure the device is properly grounded during handling.
