ADR434BRZ - Analog Devices

Description: V-Ref Precision 4.096V 30mA 8-Pin SOIC

Download ADR434BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

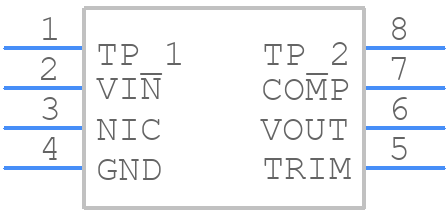

ADR434BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR434BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADR434BRZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADR434BRZ Details

  • Manufacturer Part Number:

    ADR434BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE CAN BE ADJUSTED OVER A 0.5 PERCENT RANGE USING TRIM PIN

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    4.0975 V

  • Output Voltage-Min:

    4.0945 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    6.1 V

  • Supply Voltage-Nom (Vsup):

    7 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    3 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.04%

  • Width:

    3.9 mm

ADR434BRZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration and avoid routing digital signals near the ADR434BRZ.
  • The ADR434BRZ is factory-calibrated, but it's recommended to calibrate it again after soldering to account for any thermal shifts. Use a precision voltage source and a high-impedance voltmeter to measure the output voltage. Adjust the trim pins (if available) to achieve the desired output voltage.
  • The maximum power dissipation for the ADR434BRZ is 440 mW. Ensure good thermal conductivity by using a thermally conductive PCB material, and provide adequate airflow around the device. Avoid blocking airflow with components or enclosures.
  • While the ADR434BRZ can be used as a voltage regulator, it's not designed for high-current applications. The maximum output current is 10 mA, and the device is intended for precision voltage reference applications, not as a general-purpose voltage regulator.
  • Use a shielded enclosure, and ensure the PCB is designed with EMI/RFI mitigation in mind. Use bypass capacitors and ferrite beads to filter out high-frequency noise. Keep the ADR434BRZ away from sources of EMI/RFI, such as radio transmitters and high-power electrical systems.
