ADR435ARMZ - Analog Devices

Description: Series Voltage Reference IC Fixed 5V V ±0.12% 30 mA 8-MSOP , 800µA , -40°C ~ 125°C (TA)

Download ADR435ARMZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

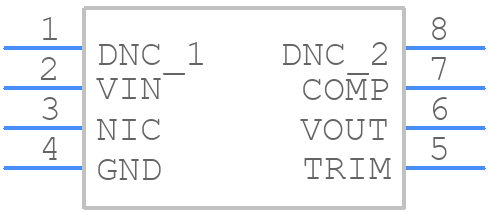

ADR435ARMZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR435ARMZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP] (RM-8)
click to zoom
3D Models
ADR435ARMZ - Analog Devices - 3D model - Small Outline Packages - 8-Lead Mini Small Outline Package [MSOP] (RM-8)
click to zoom

ADR435ARMZ Details

  • Manufacturer Part Number:

    ADR435ARMZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE CAN BE ADJUSTED OVER A 0.5 PERCENT RANGE USING TRIM PIN

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.03 A

  • Output Voltage-Max:

    5.006 V

  • Output Voltage-Min:

    4.994 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    7 V

  • Supply Voltage-Nom (Vsup):

    8 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.12%

  • Width:

    3 mm

ADR435ARMZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR435ARMZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated analog layer to minimize noise.
  • To ensure proper calibration, follow the recommended calibration procedure outlined in the datasheet, which involves shorting the CAL pin to VOUT, applying a voltage to the TRIM pin, and then adjusting the TRIM pin voltage to achieve the desired output voltage.
  • The maximum allowed power dissipation for the ADR435ARMZ is 725mW. To ensure you don't exceed it, calculate the power dissipation using the formula Pd = (VIN - VOUT) x IOUT, and ensure that the device is properly heat-sinked and operated within the recommended temperature range.
  • Yes, the ADR435ARMZ can be used as a voltage regulator, but it's not designed for high-current applications. The device has a limited output current capability of 10mA, and it's recommended to use an external pass transistor or regulator for higher current applications.
  • To protect the ADR435ARMZ from overvoltage and undervoltage conditions, use a voltage supervisor or a voltage monitor IC to detect and respond to out-of-range voltage conditions. Additionally, consider using a voltage clamp or a transient voltage suppressor to protect the device from voltage transients.
