ADR440ARMZ-REEL7 - Analog Devices

Description: Voltage References Precision Low Dropout Ultra-low Noise

Download ADR440ARMZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

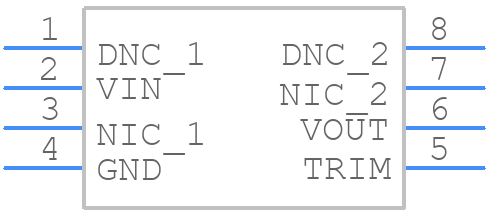

Symbol
ADR440ARMZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR440ARMZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - RM-8 (MSOP)
click to zoom
3D Models
ADR440ARMZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - RM-8 (MSOP)
click to zoom

ADR440ARMZ-REEL7 Details

  • Manufacturer Part Number:

    ADR440ARMZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    RM-8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE CAN BE ADJUSTED OVER A 0.5 PERCENT RANGE USING TRIM PIN

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    2.051 V

  • Output Voltage-Min:

    2.045 V

  • Output Voltage-Nom:

    2.048 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    3.5 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    10 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.15%

  • Width:

    3 mm

ADR440ARMZ-REEL7 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and land pattern in their application notes and evaluation boards. It's essential to follow these guidelines to ensure optimal performance, minimize thermal resistance, and reduce electromagnetic interference.
  • Proper thermal management is crucial for the ADR440ARMZ-REEL7. Ensure good airflow, use thermal vias, and consider heat sinks or thermal interface materials to keep the junction temperature below the recommended maximum. Consult the datasheet for thermal resistance and junction temperature specifications.
  • The ADR440ARMZ-REEL7 is a sensitive device and requires proper ESD protection during handling and assembly. Use anti-static wrist straps, mats, and packaging materials to prevent damage. Follow Analog Devices' recommended handling and storage procedures to ensure device reliability.
  • While the ADR440ARMZ-REEL7 is a high-performance device, it may not meet the specific requirements for high-reliability or aerospace applications. Consult Analog Devices' documentation and sales teams to determine the suitability of the device for your specific application and to explore alternative options if necessary.
  • The ADR440ARMZ-REEL7 is not specifically designed for radiation-hardened applications. However, Analog Devices provides radiation tolerance and latch-up characteristics in their documentation. Consult the datasheet and application notes for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR440ARMZ-REEL7 Overview

Use the download button to access the ADR440ARMZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR44, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
