ADR441BRZ-REEL7 - Analog Devices

Description: Voltage References LDO 2.5V w/ Crnt Sink & Srce

Download ADR441BRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

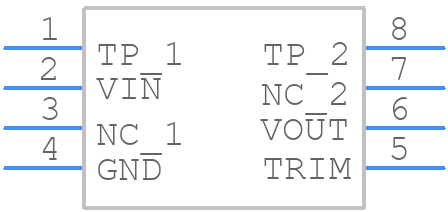

Symbol
ADR441BRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR441BRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADR441BRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADR441BRZ-REEL7 Details

  • Manufacturer Part Number:

    ADR441BRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    OUTPUT VOLTAGE CAN BE ADJUSTED OVER A 0.5 PERCENT RANGE USING TRIM PIN

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    2.501 V

  • Output Voltage-Min:

    2.499 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    3 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.04%

  • Width:

    3.9 mm

ADR441BRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR441BRZ-REEL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure proper biasing, connect the VDD pin to a stable voltage source (e.g., 5V) and the VSS pin to a solid ground plane. The input voltage range is 1.8V to 5.5V, and the output voltage range is 0V to VDD. A 0.1uF decoupling capacitor between VDD and VSS is recommended.
  • The ADR441BRZ-REEL7 has an operating temperature range of -40°C to +125°C. However, the device's performance may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat dissipation in your design.
  • While the ADR441BRZ-REEL7 is a high-quality device, it may not meet the specific requirements for high-reliability or aerospace applications. For such applications, consider using devices with specific certifications (e.g., QML-V or ESCC) or consult with Analog Devices Inc. for customized solutions.
  • To troubleshoot issues, start by verifying the power supply and input/output connections. Check for proper decoupling, noise reduction, and signal integrity. Use an oscilloscope to inspect the input and output waveforms. If issues persist, consult the datasheet, application notes, or contact Analog Devices Inc. support.
