ADR445BRZ - Analog Devices

Description: ADR445BRZ, Precision Voltage Reference 4.998 to 5.006V, 0.04% 10mA 20V max. 8-Pin SOIC

Download ADR445BRZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

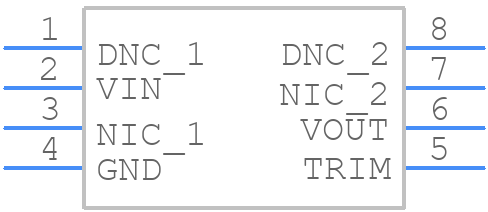

ADR445BRZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR445BRZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - (R-8)
click to zoom
3D Models
ADR445BRZ - Analog Devices - 3D model - Small Outline Packages - (R-8)
click to zoom

ADR445BRZ Details

  • Manufacturer Part Number:

    ADR445BRZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    5.002 V

  • Output Voltage-Min:

    4.998 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    6.5 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    3 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.04%

  • Width:

    3.9 mm

ADR445BRZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR445BRZ involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, using a 4-layer PCB with a dedicated analog ground plane can help reduce noise and improve performance.
  • To ensure proper biasing, connect the VREF pin to a quiet analog voltage source, and decouple the VDD pin with a 10uF capacitor to reduce noise. Also, ensure the input voltage is within the recommended range of 2.7V to 5.5V.
  • The recommended input voltage range for the ADR445BRZ is 2.7V to 5.5V. The output voltage is proportional to the input voltage, with a typical output voltage range of 0.6V to 4.5V. Operating outside the recommended input voltage range may affect the output voltage accuracy and stability.
  • The ADR445BRZ is specified to operate over a temperature range of -40°C to 125°C. Temperature changes can affect the output voltage, with a typical temperature coefficient of 10ppm/°C. Ensure proper thermal management and consider temperature compensation if high accuracy is required.
  • A recommended output capacitor value for the ADR445BRZ is 10uF. The output capacitor helps to filter out noise and reduce voltage ripple. A larger capacitor value can further reduce ripple, but may increase the startup time and affect the output voltage transient response.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADR445BRZ Overview

Use the download button to access the ADR445BRZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADR44, or try a keyword search, such as Voltage References

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
