ADR4525CRZ-R7 - Analog Devices

Description: Ultra-Low-Noise, High-Accuracy 2.5V Voltage Reference

Download ADR4525CRZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

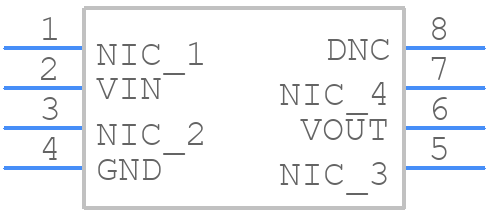

Symbol
ADR4525CRZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR4525CRZ-R7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - --Small Outline Package [SOIC_N] Narrow Body (R-8)--
click to zoom
3D Models
ADR4525CRZ-R7 - Analog Devices - 3D model - Small Outline Packages - --Small Outline Package [SOIC_N] Narrow Body (R-8)--
click to zoom

ADR4525CRZ-R7 Details

  • Manufacturer Part Number:

    ADR4525CRZ-R7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-12-06

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    Temp Coef of Voltage for BOX method 1ppm/Cel

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    2.5005 V

  • Output Voltage-Min:

    2.4995 V

  • Output Voltage-Nom:

    2.5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    2 ppm/°C

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.02%

  • Width:

    3.9 mm

ADR4525CRZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR4525CRZ-R7 involves keeping the input and output traces separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure proper biasing, connect the output pin to a high-impedance node, such as a non-inverting input of an op-amp, and use a low-impedance output stage to drive the load. Also, ensure the input voltage is within the recommended range of 2.7V to 5.5V.
  • The recommended input voltage range for the ADR4525CRZ-R7 is 2.7V to 5.5V. The output voltage is proportional to the input voltage, with a typical output voltage range of 2.5V to 5.0V. Operating outside the recommended input voltage range may affect the output voltage accuracy and stability.
  • The ADR4525CRZ-R7 is specified to operate over a temperature range of -40°C to 125°C. Temperature changes can affect the output voltage, with a typical temperature coefficient of 10 ppm/°C. Ensure proper thermal management and consider temperature compensation if high accuracy is required.
  • A 0.1 μF to 1 μF ceramic capacitor is recommended for decoupling the ADR4525CRZ-R7. Decoupling capacitors help to filter out high-frequency noise and ensure stable operation. Place the capacitor close to the device, with a short lead length, to minimize inductance and ensure effective decoupling.
