ADR4540ARZ - Analog Devices

Description: Ultra-Low-Noise, High-Accuracy 4.096V Voltage Reference

Download ADR4540ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

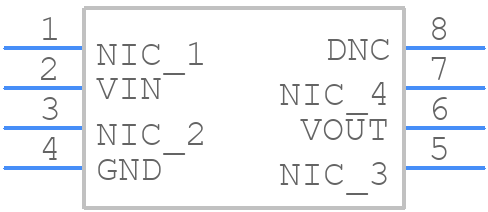

Symbol
ADR4540ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR4540ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - ADR4540ARZ
click to zoom
3D Models
ADR4540ARZ - Analog Devices - 3D model - Small Outline Packages - ADR4540ARZ
click to zoom

ADR4540ARZ Details

  • Manufacturer Part Number:

    ADR4540ARZ

  • Source Url Status Check Date:

    2013-05-01 14:56:47.88

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    Temp Coef of Voltage for BOX method 4ppm/Cel

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    4.0976384 V

  • Output Voltage-Min:

    4.0943616 V

  • Output Voltage-Nom:

    4.096 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    8 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.04%

  • Width:

    3.9 mm

ADR4540ARZ Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR4540ARZ involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the analog signal sources. Additionally, using a 4-layer PCB with a dedicated power plane and a dedicated ground plane can help to reduce noise and improve performance.
  • To ensure proper calibration, follow the calibration procedure outlined in the datasheet, and make sure to use a high-precision voltage reference. Additionally, consider using an external calibration voltage source and a precision resistor network to improve accuracy.
  • The ADR4540ARZ has a maximum junction temperature of 150°C. To ensure reliable operation, use a heat sink or thermal pad to dissipate heat, and consider using a thermally conductive material for the PCB. Additionally, ensure good airflow around the device and avoid blocking airflow with nearby components.
  • To reduce output voltage noise, use a low-pass filter or a pi-filter at the output, and consider using a noise-reducing capacitor at the output. Additionally, use a high-quality voltage reference and ensure that the power supply is well-regulated and low-noise.
  • To ensure electromagnetic compatibility, use a shielded enclosure, and consider using EMI filters or ferrite beads on the input and output lines. Additionally, use a low-noise power supply and ensure that the PCB layout is designed to minimize radiation and susceptibility to external interference.
