ADR4550ARZ - Analog Devices

Description: Ultra-Low-Noise, High-Accuracy 5.0V Voltage Reference

Download ADR4550ARZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

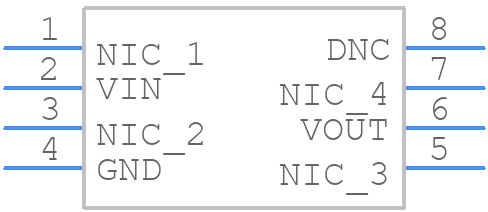

ADR4550ARZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR4550ARZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADR4550ARZ - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADR4550ARZ Details

  • Manufacturer Part Number:

    ADR4550ARZ

  • Source Url Status Check Date:

    2013-05-01 14:56:47.883

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    Temp Coef of Voltage for BOX method 4ppm/Cel

  • Analog IC - Other Type:

    THREE TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.01 A

  • Output Voltage-Max:

    5.002 V

  • Output Voltage-Min:

    4.998 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    5.1 V

  • Surface Mount:

    YES

  • Temp Coef of Voltage-Max:

    8 ppm/°C

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Trim/Adjustable Output:

    NO

  • Voltage Tolerance-Max:

    0.04%

  • Width:

    3.9 mm

ADR4550ARZ Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate analog ground plane is recommended. Keep the analog and digital grounds separate and connect them at a single point. Use a star-grounding configuration and avoid routing digital signals near the analog inputs.
  • The ADR4550ARZ has an internal calibration circuit that sets the output voltage to 5.0V ± 0.1%. No external calibration is required. However, ensure that the input voltage is within the recommended range (4.5V to 18V) and the output is decoupled with a 10uF capacitor to minimize noise.
  • The ADR4550ARZ can supply up to 10mA of output current. However, the output voltage may droop if the output current exceeds 5mA. To maintain a stable output voltage, ensure that the output current is limited to 5mA or less.
  • The ADR4550ARZ has a built-in power-on reset (POR) circuit that ensures the output is in a high-impedance state during power-up and power-down sequences. The output voltage will ramp up or down slowly during these transitions to prevent voltage spikes or glitches.
  • The ADR4550ARZ has a thermal shutdown temperature of 150°C. If the junction temperature exceeds this limit, the device will shut down to prevent damage. The device will automatically recover when the temperature drops below 150°C.
