ADR530BRTZ-REEL7 - Analog Devices

Description: Analog Devices ADR530BRTZ-REEL7, Shunt Voltage Reference 3V, ±0.2%, 3-Pin SOT-23

Download ADR530BRTZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

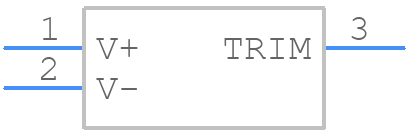

ADR530BRTZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADR530BRTZ-REEL7 - Analog Devices PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - SOT-23-3-ren4
click to zoom
3D Models
ADR530BRTZ-REEL7 - Analog Devices - 3D model - SOT23 (3-Pin) - SOT-23-3-ren4
click to zoom

ADR530BRTZ-REEL7 Details

  • Manufacturer Part Number:

    ADR530BRTZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Package Description:

    ROHS COMPLIANT, TO-236AB, SOT-23, 3 PIN

  • Pin Count:

    3

  • Manufacturer Package Code:

    RT-3

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Additional Feature:

    OUTPUT VOLTAGE ADJUSTABLE +/-0.5%

  • Analog IC - Other Type:

    TWO TERMINAL VOLTAGE REFERENCE

  • JESD-30 Code:

    R-PDSO-G3

  • JESD-609 Code:

    e3

  • Length:

    2.92 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage-Max:

    3.006 V

  • Output Voltage-Min:

    2.994 V

  • Output Voltage-Nom:

    3 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TO-236

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.12 mm

  • Surface Mount:

    YES

  • Technology:

    BIPOLAR

  • Temp Coef of Voltage-Max:

    40 ppm/°C

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.96 mm

  • Terminal Position:

    DUAL

  • Trim/Adjustable Output:

    YES

  • Voltage Tolerance-Max:

    0.2%

  • Width:

    1.3 mm

ADR530BRTZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADR530BRTZ-REEL7 involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure proper biasing, connect the VDD pin to a stable voltage source between 2.7V and 5.5V, and the VSS pin to a solid ground plane. The input voltage (VIN) should be within the recommended range of 2.7V to 5.5V. A 0.1uF decoupling capacitor should be placed close to the device.
  • The recommended input voltage range for the ADR530BRTZ-REEL7 is 2.7V to 5.5V. Operating the device outside this range may affect its performance and accuracy.
  • To minimize noise sensitivity, use a low-noise power supply, keep the input and output traces short and separate, and use decoupling capacitors close to the device. Additionally, consider using a shielded enclosure and keeping the device away from high-frequency sources.
  • The ADR530BRTZ-REEL7 has a thermal pad on the bottom of the package. To ensure proper thermal management, connect the thermal pad to a solid ground plane or a heat sink using a thermal interface material. This helps to dissipate heat and maintain the device's junction temperature within the recommended range.
