ADRF6510ACPZ-R7 - Analog Devices

Description: 30 MHz Dual Programmable Filters and Variable Gain Amplifiers

Download ADRF6510ACPZ-R7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

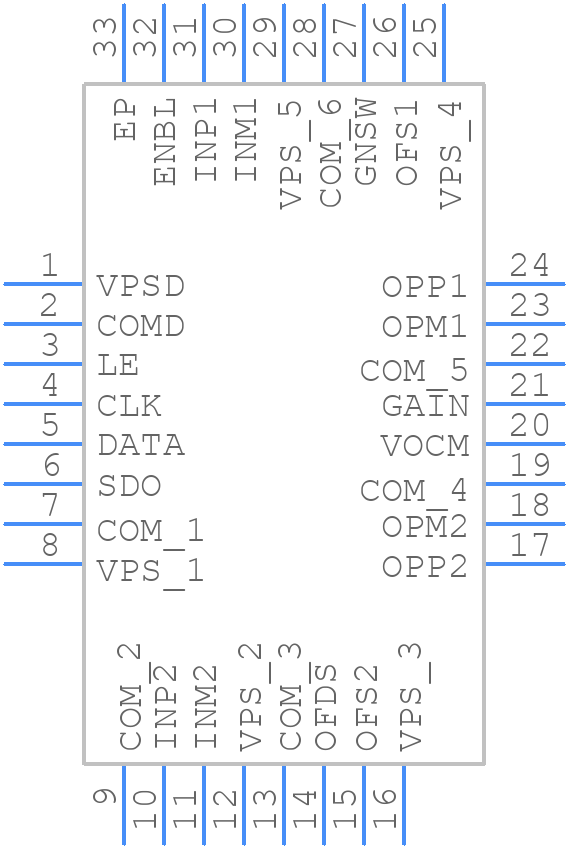

ADRF6510ACPZ-R7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF6510ACPZ-R7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-LEAD [LFCSP_VQ]
click to zoom
3D Models
ADRF6510ACPZ-R7 - Analog Devices - 3D model - Quad Flat No-Lead - 32-LEAD [LFCSP_VQ]
click to zoom

ADRF6510ACPZ-R7 Details

  • Manufacturer Part Number:

    ADRF6510ACPZ-R7

  • Source Url Status Check Date:

    2013-05-01 14:56:48.027

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LFCSP-32

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-7

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    4.75 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADRF6510ACPZ-R7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADRF6510ACPZ-R7 involves keeping the input and output traces as short as possible, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To optimize the performance of the ADRF6510ACPZ-R7, ensure that the input signal is within the recommended range, use a low-noise power supply, and minimize the distance between the device and the antenna. Additionally, optimize the PCB layout and use proper shielding to reduce electromagnetic interference (EMI).
  • The recommended power-up sequence for the ADRF6510ACPZ-R7 is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and then the enable pin (EN). This ensures that the device powers up correctly and minimizes the risk of latch-up or damage.
  • To troubleshoot issues with the ADRF6510ACPZ-R7, start by checking the power supply voltages and ensuring that they are within the recommended range. Then, verify that the input signal is within the recommended range and that the device is properly configured. Use a logic analyzer or oscilloscope to debug the digital signals and identify any issues.
  • The ADRF6510ACPZ-R7 has a maximum junction temperature of 150°C. To manage thermal performance, ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Additionally, minimize the power consumption of the device by optimizing the system design and using power-saving modes when possible.
