ADRF6518ACPZ-WP - Analog Devices

Description: ANALOG DEVICES - ADRF6518ACPZ-WP - RF/IF AMP, 66DB, 300MHZ-1.1GHZ, LFCSP-32

Download ADRF6518ACPZ-WP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

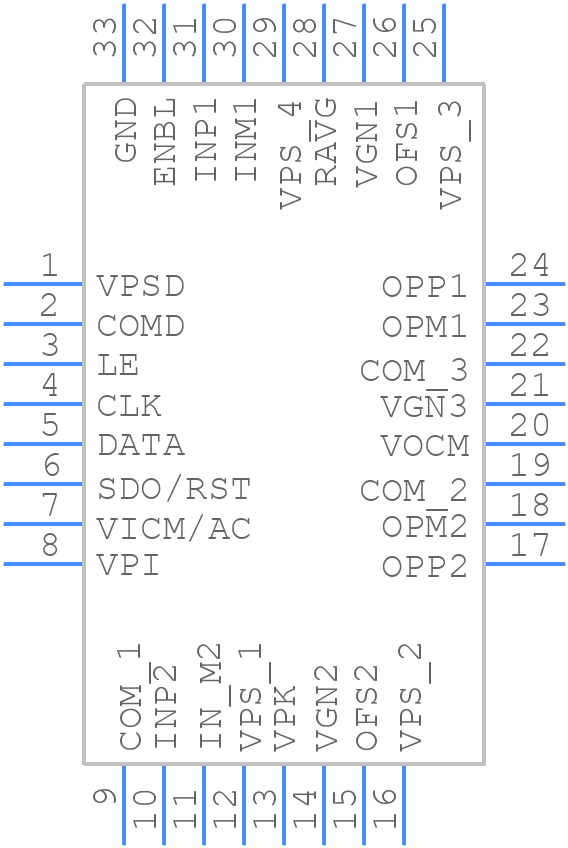

ADRF6518ACPZ-WP - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADRF6518ACPZ-WP - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - CP-32-13
click to zoom
3D Models
ADRF6518ACPZ-WP - Analog Devices - 3D model - Quad Flat No-Lead - CP-32-13
click to zoom

ADRF6518ACPZ-WP Details

  • Manufacturer Part Number:

    ADRF6518ACPZ-WP

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MO-220WHHD, 32 PIN

  • Pin Count:

    32

  • Manufacturer Package Code:

    CP-32-13

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Consumer IC Type:

    CONSUMER CIRCUIT

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

ADRF6518ACPZ-WP Frequently Asked Questions (FAQs)

  • A good PCB layout for ADRF6518ACPZ-WP involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN-1369 for more details.
  • The ADRF6518ACPZ-WP requires a bias voltage of 5V ± 10% on the VCC pin, and a bias current of 10mA to 20mA on the VBIAS pin. Ensure that the bias voltage and current are stable and noise-free, and that the device is operated within the recommended temperature range of -40°C to 85°C.
  • The ADRF6518ACPZ-WP can handle input powers up to +15dBm. Exceeding this limit may cause damage to the device or affect its performance. It's recommended to use an input attenuator or limiter to ensure that the input power is within the recommended range.
  • The ADRF6518ACPZ-WP requires calibration to optimize its performance. Calibration involves adjusting the device's internal registers to compensate for process variations and temperature effects. Refer to the device datasheet and application notes for calibration procedures and recommended settings.
  • The typical settling time of the ADRF6518ACPZ-WP is around 10us to 20us, depending on the input frequency and amplitude. This is the time it takes for the device to stabilize its output after a change in input frequency or amplitude.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADRF6518ACPZ-WP Overview

Use the download button to access the ADRF6518ACPZ-WP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADRF6, or try a keyword search, such as Other Consumer ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
