ADS1191IPBS - Texas Instruments

Description: Complete Low Power Integrated Analog Front End for ECG Applications

Download ADS1191IPBS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

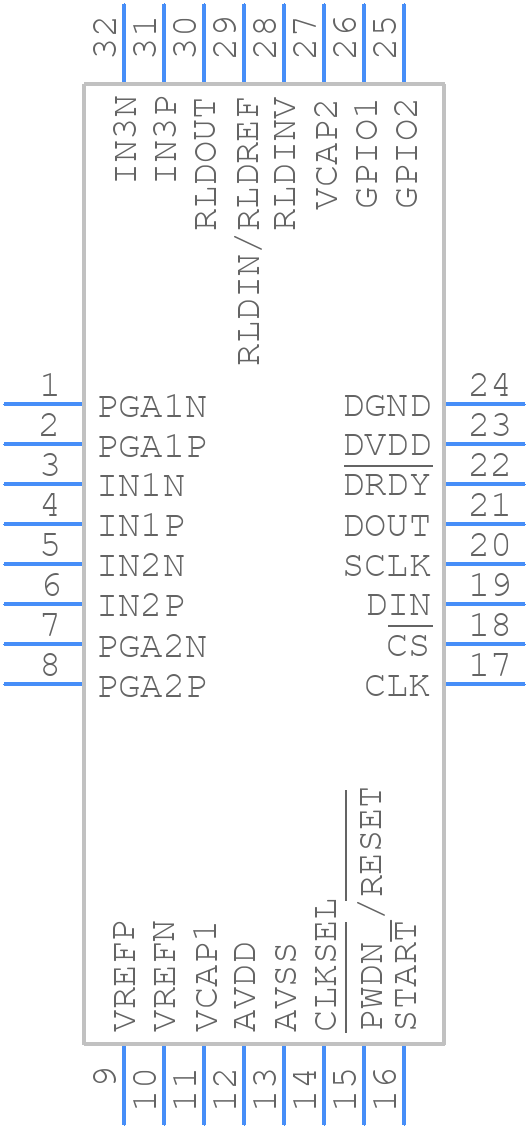

ADS1191IPBS - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1191IPBS - Texas Instruments PCB footprint - Quad Flat Packages - Quad Flat Packages - TQFP-32
click to zoom
3D Models
ADS1191IPBS - Texas Instruments - 3D model - Quad Flat Packages - TQFP-32
click to zoom

ADS1191IPBS Details

  • Manufacturer Part Number:

    ADS1191IPBS

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Pin Count:

    32

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    ALSO REQUIRED DIGITAL SUPPLY OF 1.7 TO 3.6V

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TFQFP

  • Package Equivalence Code:

    TQFP32,.28SQ

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, THIN PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    5.25 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS1191IPBS Frequently Asked Questions (FAQs)

  • The ADS1191IPBS is a high-impedance device, so it's essential to keep the analog signal traces short and away from digital signal traces. Place the device close to the electrodes, and use a ground plane to minimize noise. Refer to the TI application note 'ADS1191 Layout and Placement Guidelines' for more information.
  • The ADS1191IPBS has a programmable gain amplifier (PGA). To optimize the gain, start with the default gain setting and adjust based on your signal amplitude. Use the device's internal calibration to ensure accurate gain settings. Refer to the TI application note 'ADS1191 PGA Gain Optimization' for more information.
  • The ADS1191IPBS has a built-in notch filter for 50/60 Hz noise rejection. Additionally, use a low-pass filter (e.g., RC filter) to remove high-frequency noise. Implement a digital filter (e.g., FIR filter) in your microcontroller to further reduce noise and interference.
  • Follow proper PCB design and layout guidelines to minimize electromagnetic radiation. Use shielding, grounding, and filtering to reduce electromagnetic interference (EMI). Ensure that your system meets the relevant EMC standards (e.g., IEC 60601-1-2).
  • Use a low-ESR capacitor (e.g., 10 μF) close to the device's power pins to decouple the power supply. Add a 100 nF capacitor in parallel to filter high-frequency noise. Ensure that the power supply is well-regulated and has a low noise floor.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS1191IPBS Overview

Use the download button to access the ADS1191IPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11, or try a keyword search, such as Other Signal Circuits
