The ADS1191IRSMT is a sensitive analog device, and proper layout and placement are crucial for optimal performance. TI recommends placing the device close to the analog signal sources, using a star-ground configuration, and keeping digital and analog traces separate.
To optimize the ADC's performance, consider the signal frequency, amplitude, and noise floor. Adjust the gain, filter settings, and sampling rate accordingly. Additionally, ensure proper PCB layout, decoupling, and power supply filtering.
Drive the analog inputs with a low-impedance source, and ensure the signal amplitude is within the specified range. Use a buffer amplifier if necessary, and consider adding anti-aliasing filters to prevent aliasing.
The ADS1191IRSMT outputs 24-bit data. Ensure your microcontroller or FPGA can handle this data width. Consider using a FIFO or buffer to handle data transfer, and implement error checking and correction mechanisms.
The ADS1191IRSMT requires a single 3.3V or 5V power supply. Ensure a clean, low-noise power supply with adequate decoupling capacitors. Use a voltage regulator with a low dropout voltage to minimize power consumption.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1191IRSMT Overview

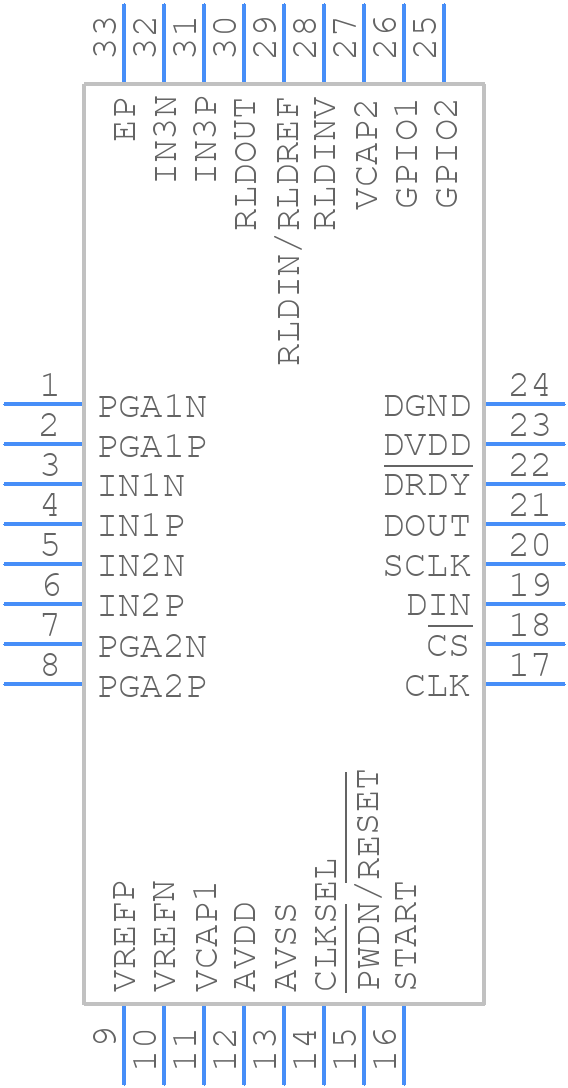

Use the download button to access the ADS1191IRSMT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
