The ADS1192IPBS requires careful layout and placement to minimize noise and ensure optimal performance. TI recommends placing the device close to the analog signal sources, using a solid ground plane, and keeping the analog and digital signal traces separate. Additionally, the device should be placed away from high-frequency noise sources and heat sources.
The gain and offset calibration for the ADS1192IPBS can be optimized by following the calibration procedure outlined in the datasheet. This involves applying a known input signal, measuring the output, and adjusting the gain and offset registers accordingly. It's also important to consider the noise floor and input impedance of the device when optimizing the calibration.
The recommended power-up sequence for the ADS1192IPBS is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other power-related issues.
The HPF corner frequency in the ADS1192IPBS can be adjusted by programming the HPF register. The corner frequency should be set based on the specific application requirements, taking into account the signal frequency range and noise characteristics. It's also important to consider the filter settling time and the impact on the overall system performance.
To reduce noise and interference in the ADS1192IPBS, it's recommended to use proper shielding, grounding, and layout techniques. Additionally, the device should be placed in a quiet area of the PCB, away from high-frequency noise sources and heat sources. It's also important to use a low-noise power supply and to consider the use of noise filters or chokes in the signal path.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1192IPBS Overview

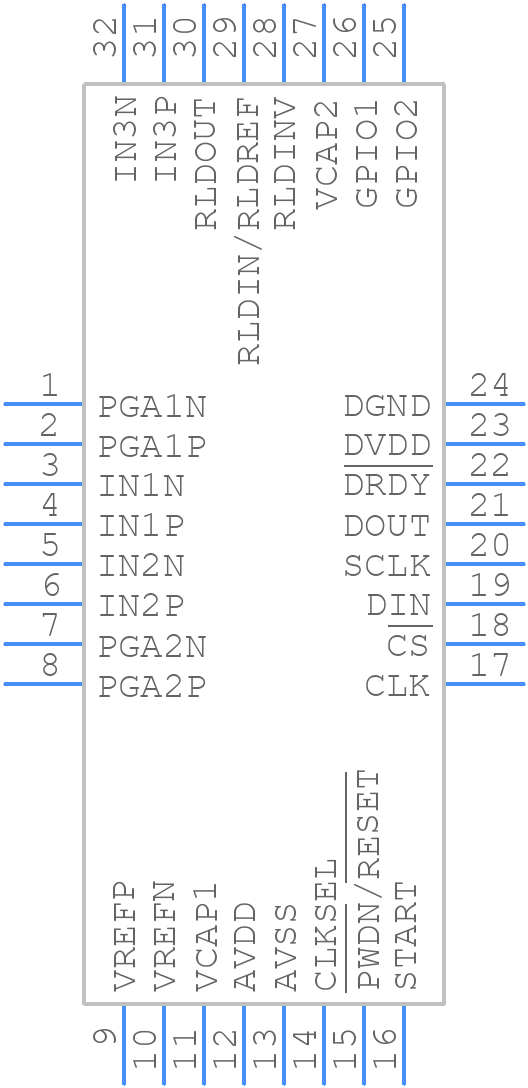

Use the download button to access the ADS1192IPBS schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS11,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
