ADS1293CISQE/NOPB - Texas Instruments

Description: 3-Ch 24-Bit Analog Front End WQFN28EP ADS1293CISQE/NOPB, Analogue Front End IC, 3-channel 24 bit-, 25.6ksps SPI (4-Wire), 28-Pin WQFN

Download ADS1293CISQE/NOPB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

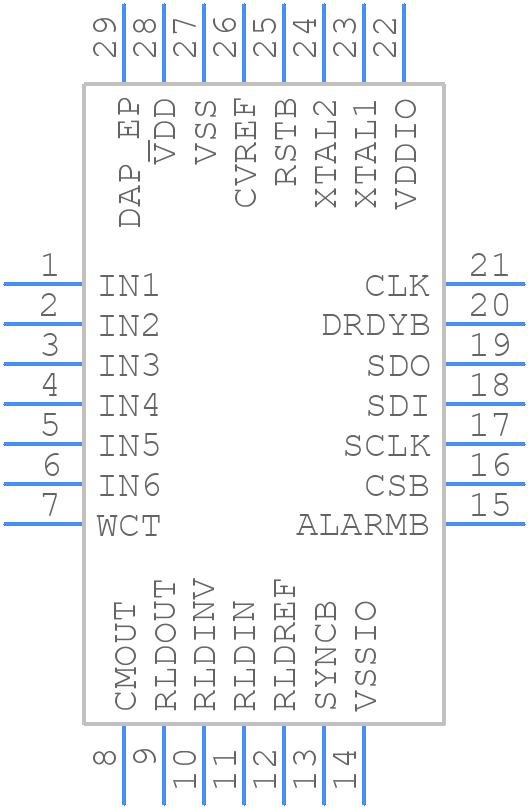

ADS1293CISQE/NOPB - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS1293CISQE/NOPB - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RSG0028A
click to zoom
3D Models
ADS1293CISQE/NOPB - Texas Instruments - 3D model - Quad Flat No-Lead - RSG0028A
click to zoom

ADS1293CISQE/NOPB Details

  • Manufacturer Part Number:

    ADS1293CISQE/NOPB

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • Input Voltage-Max:

    0.4 V

  • JESD-30 Code:

    S-XQCC-N28

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    3

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    28

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

ADS1293CISQE/NOPB Frequently Asked Questions (FAQs)

  • Texas Instruments recommends a 4-layer PCB with a solid ground plane, and to route the analog and digital signals separately to minimize noise and interference. A dedicated analog ground plane is also recommended.
  • Optimizing the ADC's performance requires careful selection of the gain, sampling rate, and filter settings. TI provides an ADC Performance Calculator tool to help with this process. Additionally, the ADS1293's datasheet provides guidelines for optimizing performance for different applications.
  • The recommended power-up sequence is to power up the analog supply (AVDD) first, followed by the digital supply (DVDD), and then the clock signal. This ensures that the ADC is properly initialized and configured before starting conversions.
  • The ADS1293's analog inputs are high-impedance, so it's essential to use a buffer amplifier or an impedance-matching network to ensure proper signal transmission and minimize signal attenuation.
  • The maximum cable length for the ADS1293's analog input signals depends on the signal frequency and amplitude. As a general rule, keep the cable length as short as possible (less than 10 inches) to minimize signal degradation and noise pickup.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS1293CISQE/NOPB Overview

Use the download button to access the ADS1293CISQE/NOPB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12, or try a keyword search, such as Other Signal Circuits
