The ADS1294RIZXGT requires careful PCB layout and routing to minimize noise and ensure optimal performance. TI recommends following the layout guidelines in the datasheet, including keeping analog and digital traces separate, using a solid ground plane, and minimizing the length of analog signal traces.
The optimal gain and filter settings for the ADS1294RIZXGT depend on the specific application and signal characteristics. TI recommends using the device's built-in calibration and test modes to determine the optimal settings, and consulting the datasheet and application notes for guidance.
The recommended power-up sequence for the ADS1294RIZXGT is to first apply the analog power supply (AVDD), followed by the digital power supply (DVDD), and finally the clock signal. This ensures that the device powers up correctly and minimizes the risk of latch-up or other issues.
To minimize EMI and RFI with the ADS1294RIZXGT, TI recommends using proper shielding, grounding, and filtering techniques, such as using a metal shield around the device, connecting the device's exposed pad to a solid ground plane, and using EMI filters on the input signals.
The maximum cable length and type recommended for the ADS1294RIZXGT's analog input signals depend on the specific application and signal characteristics. As a general guideline, TI recommends using shielded, twisted-pair cables with a maximum length of 10 feet (3 meters) to minimize noise and signal degradation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ADS1294RIZXGT Overview

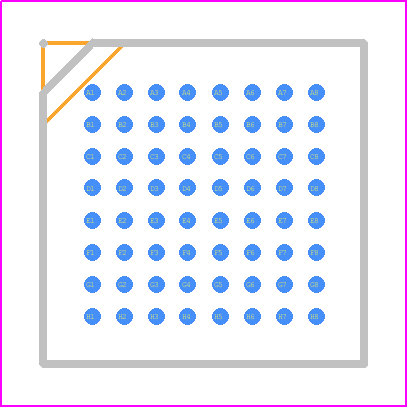

Use the download button to access the ADS1294RIZXGT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS12,
or try a keyword search, such as Other Signal Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
