ADS7846E/2K5G4 - Texas Instruments

Description: Resistive Touch Screen 4-Wire 16-Pin SSOP Tape and Reel

Download ADS7846E/2K5G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

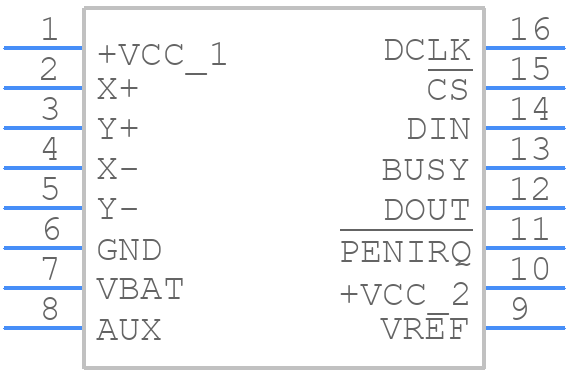

ADS7846E/2K5G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7846E/2K5G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DBQ0016A
click to zoom
3D Models
ADS7846E/2K5G4 - Texas Instruments - 3D model - Small Outline Packages - DBQ0016A
click to zoom

ADS7846E/2K5G4 Details

  • Manufacturer Part Number:

    ADS7846E/2K5G4

  • Brand Name:

    Texas Instruments

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SSOP-16

  • Pin Count:

    16

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    2

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

ADS7846E/2K5G4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the clock signal. This ensures proper initialization of the device.
  • The BUSY signal goes high during conversion and remains high until the conversion is complete. The host should wait for BUSY to go low before accessing the data.
  • The maximum frequency of the clock signal is 3.25 MHz. Exceeding this frequency may result in incorrect conversions or device malfunction.
  • The gain of the ADS7846E can be configured using the GAIN[1:0] pins. The gain settings are: 00 = 1x, 01 = 2x, 10 = 4x, and 11 = 8x.
  • The VREF pin is the reference voltage input for the ADC. It should be connected to a stable voltage source between 2.5V and 5V, depending on the desired full-scale input range.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADS7846E/2K5G4 Overview

Use the download button to access the ADS7846E/2K5G4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADS78, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
