ADS7846N/2K5G4 - Texas Instruments

Description: Touch Screen Controllers 4-wire Touch Screen Controller

Download ADS7846N/2K5G4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

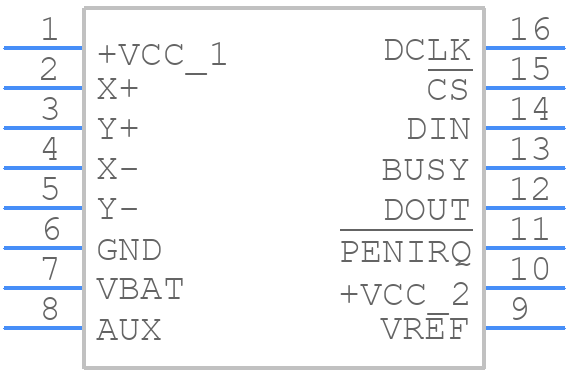

ADS7846N/2K5G4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
ADS7846N/2K5G4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PW0016A 2021
click to zoom
3D Models
ADS7846N/2K5G4 - Texas Instruments - 3D model - Small Outline Packages - PW0016A 2021
click to zoom

ADS7846N/2K5G4 Details

  • Manufacturer Part Number:

    ADS7846N/2K5G4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Part Package Code:

    TSSOP

  • Pin Count:

    16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.30

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    1

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max:

    5.25 V

  • Supply Voltage-Min:

    2.2 V

  • Supply Voltage-Nom:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • uPs/uCs/Peripheral ICs Type:

    CAPACITIVE TOUCH SCREEN CONTROLLERS

ADS7846N/2K5G4 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by VREF, and then the clock signal. This ensures proper initialization of the device.
  • The BUSY signal goes high during conversion and remains high until the conversion is complete. The host should wait for BUSY to go low before accessing the conversion result.
  • The maximum frequency of the clock signal is 3.25 MHz. Exceeding this frequency may result in incorrect conversion results or device malfunction.
  • Yes, the ADS7846N/2K5G4 can use an external reference voltage between 2.2V and 2.7V. However, the device's performance and accuracy may be affected if the reference voltage is not within the recommended range.
  • Calibration involves adjusting the offset and gain of the device to match the specific application requirements. TI provides a calibration procedure in the datasheet, which involves applying a known input voltage and adjusting the offset and gain registers accordingly.
