ADSP-21489KSWZ-3B - Analog Devices

ADSP-21489KSWZ-3B Details

• Manufacturer Part Number:

  ADSP-21489KSWZ-3B

• Source Url Status Check Date:

  2013-05-01 14:56:48.76

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  QFP

• Package Description:

  LQFP-176

• Pin Count:

  176

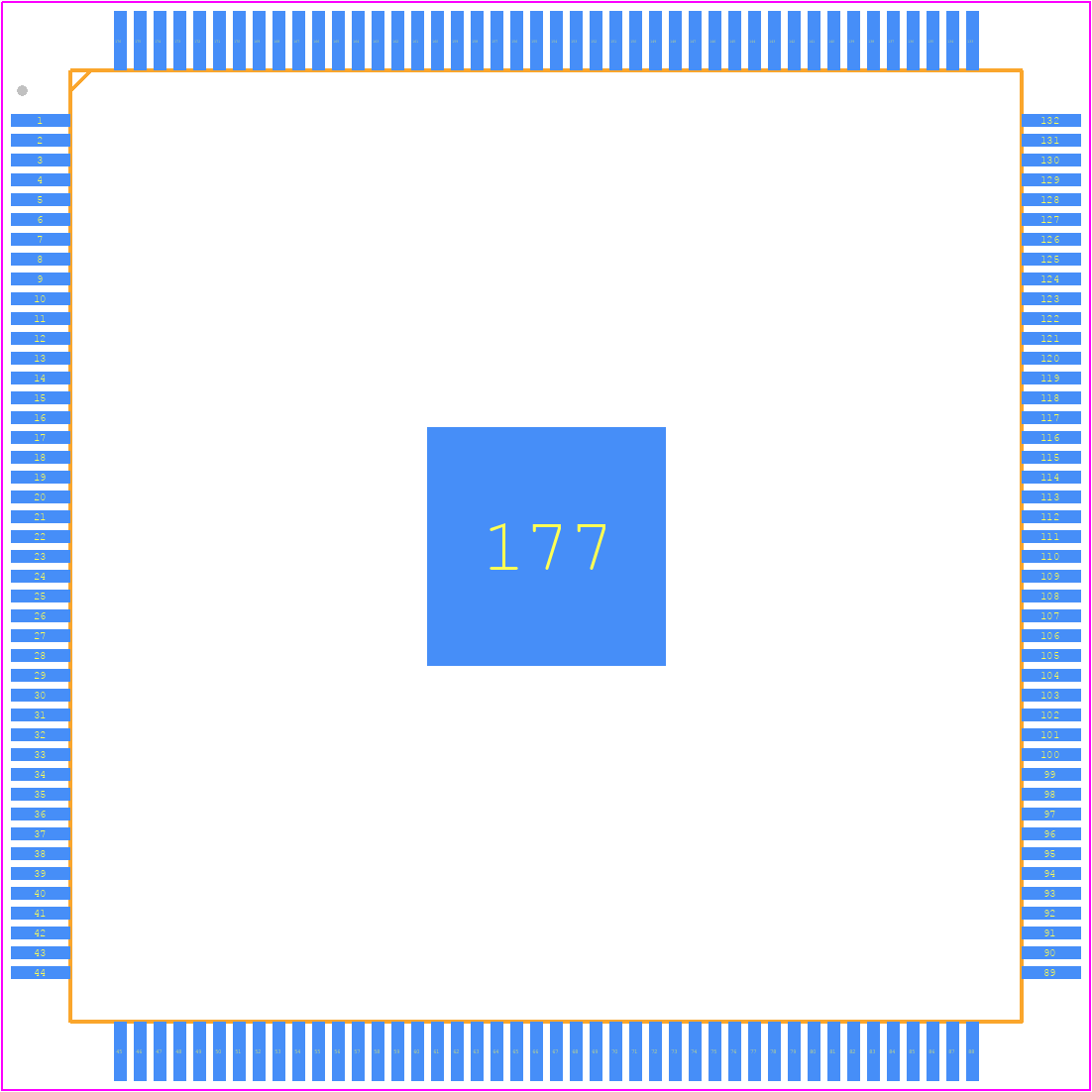

• Manufacturer Package Code:

  SW-176-2

• Country Of Origin:

  Mainland China

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Address Bus Width:

  24

• Barrel Shifter:

  YES

• Bit Size:

  40

• Boundary Scan:

  YES

• Clock Frequency-Max:

  25 MHz

• External Data Bus Width:

  16

• Format:

  FLOATING POINT

• Integrated Cache:

  YES

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PQFP-G176

• JESD-609 Code:

  e3

• Length:

  24 mm

• Low Power Mode:

  NO

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  34

• Number of External Interrupts:

  3

• Number of Serial I/Os:

  2

• Number of Terminals:

  176

• Number of Timers:

  2

• On Chip Data RAM Width:

  1

• Operating Temperature-Max:

  110 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  HQFP176,1.0SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• RAM (words):

  5242880

• Seated Height-Max:

  1.6 mm

• Supply Current-Max:

  450 mA

• Supply Voltage-Max:

  1.15 V

• Supply Voltage-Min:

  1.05 V

• Supply Voltage-Nom:

  1.1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  24 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, MIXED
