ADSP-21569KBCZ8 - Analog Devices

Description: Up to 1GHz SHARC+ DSP with 640KB L1, 1024KB Shared L2 SRAM, 400-Ball CSP_BGA

Download ADSP-21569KBCZ8 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21569KBCZ8 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

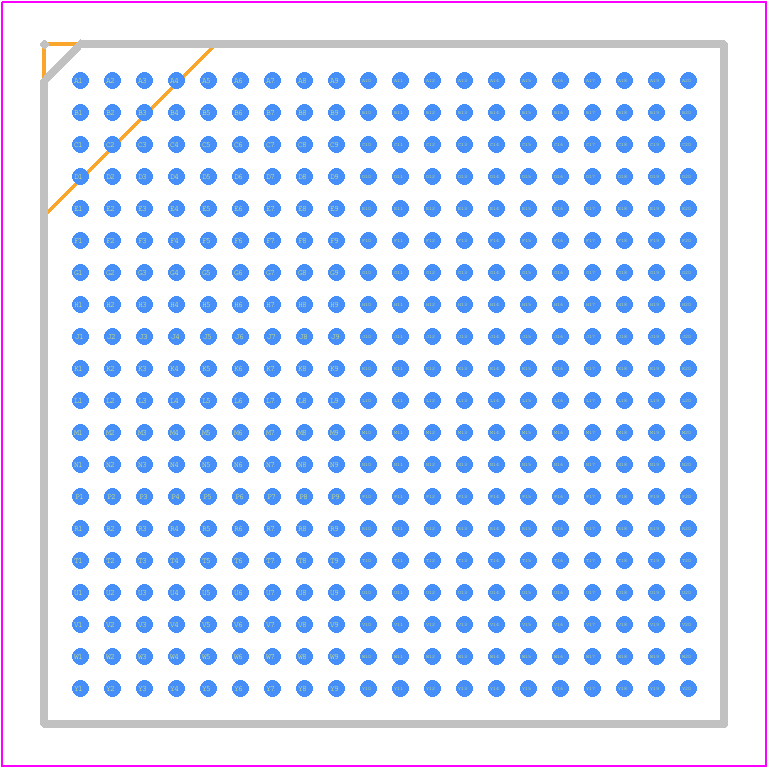

ADSP-21569KBCZ8 - Analog Devices PCB footprint - BGA - BGA - 400-Ball Chip Scale Package Ball Grid Array
click to zoom
3D Models
ADSP-21569KBCZ8 - Analog Devices - 3D model - BGA - 400-Ball Chip Scale Package Ball Grid Array
click to zoom

ADSP-21569KBCZ8 Details

  • Manufacturer Part Number:

    ADSP-21569KBCZ8

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • Pin Count:

    400

  • Manufacturer Package Code:

    BC-400-3

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    500 MHz

  • External Data Bus Width:

    16

  • Format:

    FLOATING POINT

  • Integrated Cache:

    YES

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    400

  • Number of Timers:

    10

  • On Chip Data RAM Width:

    32

  • Operating Temperature-Max:

    110 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • RAM (words):

    163840

  • ROM Programmability:

    FLASH

  • Seated Height-Max:

    1.38 mm

  • Supply Voltage-Max:

    1.05 V

  • Supply Voltage-Min:

    0.95 V

  • Supply Voltage-Nom:

    1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21569KBCZ8 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to power up the core voltage (VDD_INT) first, followed by the I/O voltage (VDD_IO). This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance, consider the following: use the highest possible clock frequency, optimize memory access patterns, use the cache and DMA controllers, and minimize the number of interrupts. Additionally, use the ADSP-21569KBCZ8's built-in performance monitoring units to identify bottlenecks.
  • The maximum operating temperature range for the ADSP-21569KBCZ8 is -40°C to +125°C. However, it's recommended to operate the device within the industrial temperature range of -40°C to +85°C for optimal performance and reliability.
  • To ensure EMC, follow proper PCB design guidelines, use shielding and grounding techniques, and implement electromagnetic interference (EMI) filters on the board. Additionally, consider using the ADSP-21569KBCZ8's built-in features such as spread spectrum clocking and clock domain separation to reduce EMI emissions.
  • The recommended method for debugging the ADSP-21569KBCZ8 is to use the VisualDSP++ development environment, which provides a comprehensive set of debugging tools, including a simulator, emulator, and debugger. Additionally, use the ADSP-21569KBCZ8's built-in debug features such as the Debug Interface and the CoreSight debug architecture.
