ADSP-21571KSWZ-4 - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC 2x SHARC, LQFP Package, 450 MHz

Download ADSP-21571KSWZ-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-21571KSWZ-4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

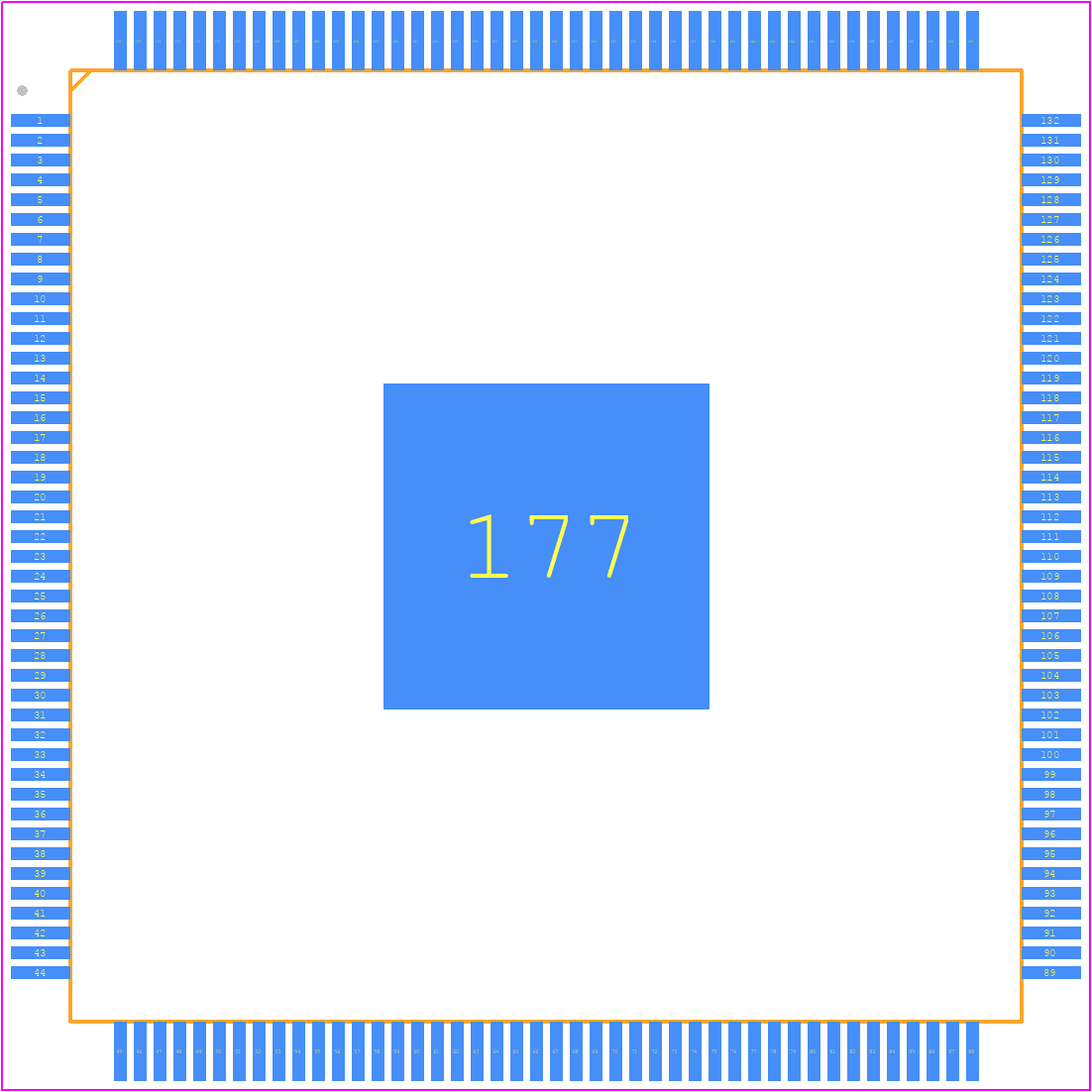

ADSP-21571KSWZ-4 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - SW-176-5)
click to zoom
3D Models
ADSP-21571KSWZ-4 - Analog Devices - 3D model - Quad Flat Packages - SW-176-5)
click to zoom

ADSP-21571KSWZ-4 Details

  • Manufacturer Part Number:

    ADSP-21571KSWZ-4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    176

  • Manufacturer Package Code:

    SW-176-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    33 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    176

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-21571KSWZ-4 Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout and thermal management guide in the ADSP-21571 Hardware Reference Manual, which includes guidelines for thermal vias, heat sinks, and PCB stack-up. Additionally, the company offers a thermal modeling tool to help designers optimize their design.
  • To optimize performance, designers should consider using the lowest possible clock frequency, disabling unused peripherals, and using the power-saving features of the processor, such as dynamic voltage and frequency scaling. Additionally, Analog Devices provides a power estimation tool to help designers estimate power consumption and optimize their design.
  • The recommended settings for the PLL and clock domains can be found in the ADSP-21571 Hardware Reference Manual and the ADSP-21571 PLL Calculator tool provided by Analog Devices. These resources provide guidelines for configuring the PLL, clock domains, and clock frequencies to ensure optimal performance and minimize jitter.
  • The ADSP-21571KSWZ-4 can be booted from various sources, including flash memory, SPI, and UART. Analog Devices provides a boot loader and a software development kit (SDK) that includes examples and documentation to help designers implement booting and loading code on the processor.
  • When using the ADSP-21571KSWZ-4 in a multi-core or multi-processor system, designers should consider the synchronization of clocks, data coherency, and shared resource access. Analog Devices provides guidelines and recommendations for designing multi-core and multi-processor systems in the ADSP-21571 Hardware Reference Manual and the ADSP-21571 Multi-Core Programming Guide.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-21571KSWZ-4 Overview

Use the download button to access the ADSP-21571KSWZ-4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Digital Signal Processors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
