ADSP-21583KBCZ-4A footprint, schematic symbol and 3D model by Analog Devices

Symbol

click to zoom

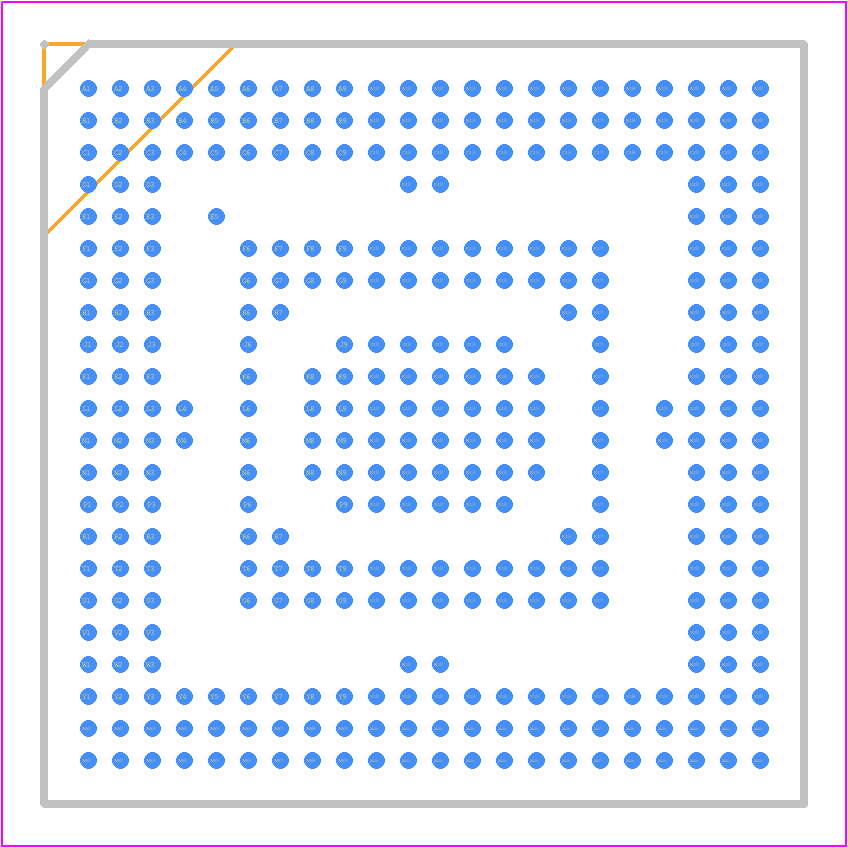

PCB Footprints

ADSP-21583KBCZ-4A - Analog Devices PCB footprint - BGA - BGA - CSP_BGA-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ADSP-21583KBCZ-4A
Part Number ADSP-21583KBCZ-4A
Manufacturer Analog Devices
Pin Count 349
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - CSP_BGA-1
Released Date Aug 28, 2026
Last Modified Date Aug 28, 2026 6:23 AM UTC
Pinout / Pin List Click Here (Member Only)

ADSP-21583KBCZ-4A Details

Manufacturer Part Number:
ADSP-21583KBCZ-4A
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CSPBGA-349
Pin Count:
349
Manufacturer Package Code:
BC-349-1
Country Of Origin:
South Korea
ECCN Code:
5A992.C
HTS Code:
8542.31.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
9
Bus Compatibility:
SPI; UART
Clock Frequency-Max:
500 MHz
JESD-30 Code:
S-PBGA-B349
JESD-609 Code:
e1
Length:
19 mm
Moisture Sensitivity Level:
3
Number of Terminals:
349
Operating Temperature-Max:
70 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
LFBGA
Package Equivalence Code:
BGA529,23X23,32
Package Shape:
SQUARE
Package Style:
GRID ARRAY, LOW PROFILE, FINE PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.5 mm
Supply Voltage-Max:
1.15 V
Supply Voltage-Min:
1.05 V
Supply Voltage-Nom:
1.1 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
COMMERCIAL
Terminal Finish:
Tin/Silver/Copper (Sn/Ag/Cu)
Terminal Form:
BALL
Terminal Pitch:
0.8 mm
Terminal Position:
BOTTOM
Time@Peak Reflow Temperature-Max (s):
30
Width:
19 mm
uPs/uCs/Peripheral ICs Type:
DSP PERIPHERAL, FLOATING POINT PROCESSOR

ADSP-21583KBCZ-4A Frequently Asked Questions (FAQs)

The recommended power-up sequence is to apply VDDINT and VDDRTC first, followed by VDDDSP, and then finally the clock signal. This ensures that the internal voltage regulators and clock circuitry are properly initialized.
Optimizing performance requires understanding the specific requirements of your application. Factors to consider include clock speed, memory usage, and peripheral configuration. Analog Devices provides a range of development tools and software frameworks to help optimize performance, including the CrossCore Embedded Studio and the ADSP-21583 EZ-KIT.
The maximum operating temperature range for the ADSP-21583KBCZ-4A is -40°C to +85°C. However, it's essential to note that the device's performance and reliability may be affected at extreme temperatures, and proper thermal management is crucial to ensure reliable operation.
The ADSP-21583KBCZ-4A is not specifically designed for safety-critical applications. However, Analog Devices provides a range of safety-certified processors and development tools that can be used in safety-critical applications, such as the ADSP-CM4030 and the Safety Manual for the ADSP-CM40x family.
Ensuring EMC requires careful design and layout of the PCB, as well as proper shielding and filtering of the device's inputs and outputs. Analog Devices provides guidelines and recommendations for EMC design in the ADSP-21583 datasheet and application notes.
