ADSP-2181KSTZ-160 - Analog Devices

ADSP-2181KSTZ-160 Details

• Manufacturer Part Number:

  ADSP-2181KSTZ-160

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  QFP

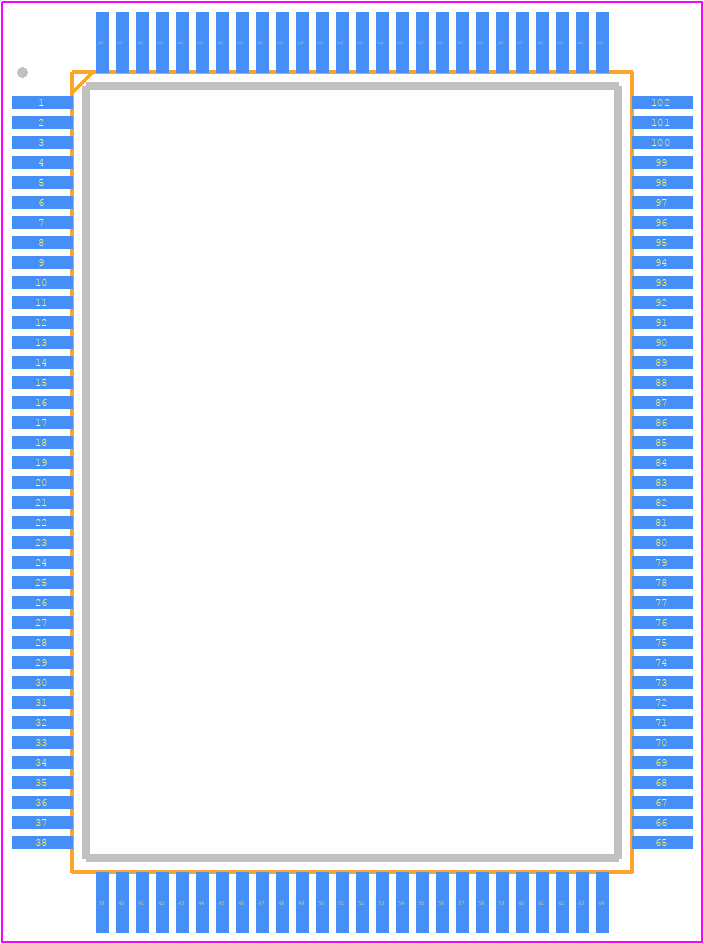

• Package Description:

  METRIC, PLASTIC, TQFP-128

• Pin Count:

  128

• Manufacturer Package Code:

  ST-128-2

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Address Bus Width:

  14

• Barrel Shifter:

  YES

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  20 MHz

• External Data Bus Width:

  24

• Format:

  FIXED POINT

• Integrated Cache:

  NO

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  R-PQFP-G128

• JESD-609 Code:

  e3

• Length:

  20 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  2

• Number of External Interrupts:

  4

• Number of Serial I/Os:

  2

• Number of Terminals:

  128

• Number of Timers:

  1

• On Chip Data RAM Width:

  16

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Equivalence Code:

  QFP128,.63X.87,20

• Package Shape:

  RECTANGULAR

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• Qualification Status:

  Not Qualified

• RAM (words):

  8192

• Seated Height-Max:

  1.6 mm

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  4.5 V

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  MATTE TIN

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Width:

  14 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
