ADSP-BF512BSWZ-3 - Analog Devices

Description: Analog Devices ADSP-BF512BSWZ-3, 16/32bit Blackfin Digital Signal Processor 300MHz 116 byte SDRAM 176-Pin LQFP

Download ADSP-BF512BSWZ-3 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF512BSWZ-3 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

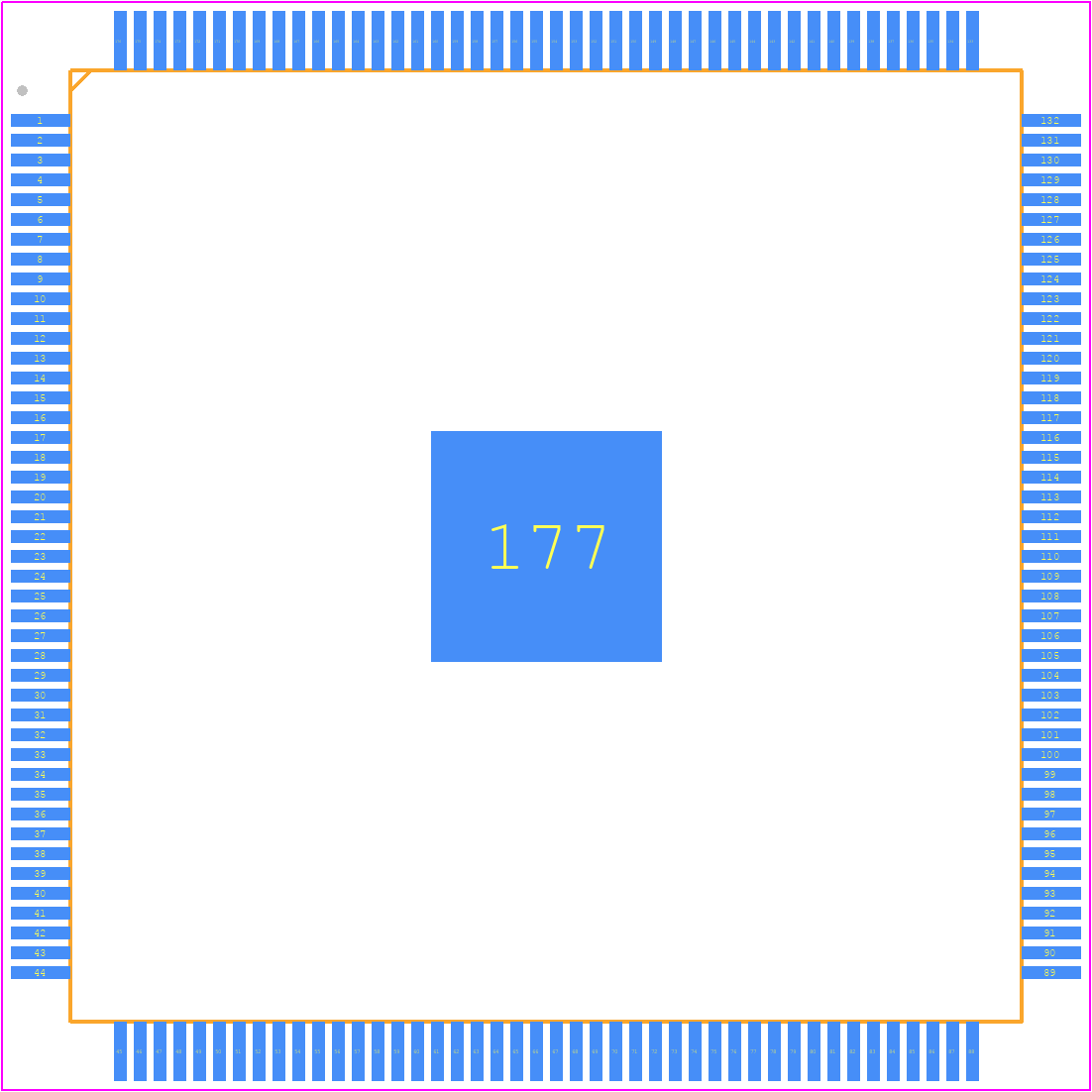

ADSP-BF512BSWZ-3 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 176-Lead Low Profile Quad Flat Package [LQFP_EP] (SQ-176-2)
click to zoom
3D Models
ADSP-BF512BSWZ-3 - Analog Devices - 3D model - Quad Flat Packages - 176-Lead Low Profile Quad Flat Package [LQFP_EP] (SQ-176-2)
click to zoom

ADSP-BF512BSWZ-3 Details

  • Manufacturer Part Number:

    ADSP-BF512BSWZ-3

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-176

  • Pin Count:

    176

  • Manufacturer Package Code:

    SQ-176-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    19

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    300 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    176

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP176,1.0SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Speed:

    300 MHz

  • Supply Voltage-Max:

    1.47 V

  • Supply Voltage-Min:

    1.164 V

  • Supply Voltage-Nom:

    1.225 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF512BSWZ-3 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDPLL and VDDOSC. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes selecting the optimal clock frequency, configuring the cache, and optimizing the memory hierarchy. Consult the ADSP-BF512BSWZ-3's software development kit (SDK) and application notes for guidance.
  • The ADSP-BF512BSWZ-3 has a maximum junction temperature of 125°C. Ensure proper heat sinking, thermal interface material, and airflow to maintain a safe operating temperature. Consult the datasheet and thermal management application notes for more information.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-BF512BSWZ-3's EMC application notes and relevant industry standards (e.g., IEC 61000-4-2) for guidance.
  • In harsh environments, consider the processor's operating temperature range, humidity, and vibration tolerance. Ensure proper sealing, conformal coating, and protection from moisture and contaminants. Consult the datasheet and relevant industry standards (e.g., IEC 60068-2-27) for guidance.
