ADSP-BF514KSWZ-4 - Analog Devices

Description: Blackfin Embedded Processor

Download ADSP-BF514KSWZ-4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF514KSWZ-4 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

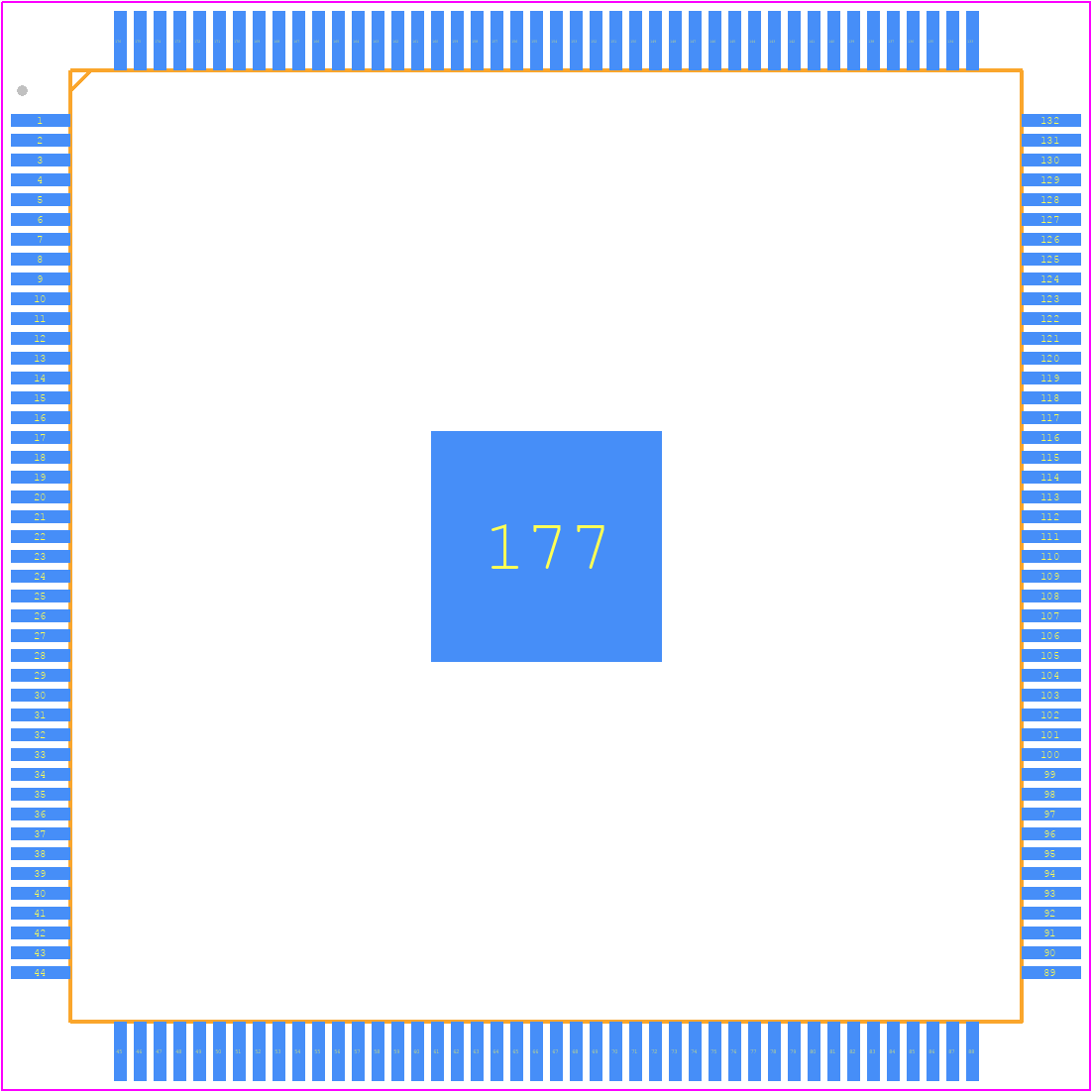

ADSP-BF514KSWZ-4 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - 176-Lead Low Profile Quad Flat Package [LQFP_EP] (SQ-176-2)
click to zoom
3D Models
ADSP-BF514KSWZ-4 - Analog Devices - 3D model - Quad Flat Packages - 176-Lead Low Profile Quad Flat Package [LQFP_EP] (SQ-176-2)
click to zoom

ADSP-BF514KSWZ-4 Details

  • Manufacturer Part Number:

    ADSP-BF514KSWZ-4

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFP

  • Package Description:

    LQFP-176

  • Pin Count:

    176

  • Manufacturer Package Code:

    SQ-176-2

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    19

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    400 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G176

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    176

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFQFP

  • Package Equivalence Code:

    QFP176,1.0SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.6 mm

  • Speed:

    400 MHz

  • Supply Voltage-Max:

    1.47 V

  • Supply Voltage-Min:

    1.164 V

  • Supply Voltage-Nom:

    1.4 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF514KSWZ-4 Frequently Asked Questions (FAQs)

  • Analog Devices provides a reference design and layout guidelines in the ADSP-BF514 Hardware Reference Manual. Additionally, the company offers a thermal modeling tool to help with thermal management. It's essential to follow these guidelines to ensure proper heat dissipation and signal integrity.
  • Analog Devices provides a range of development tools, including the VisualDSP++ development environment and the ADSP-BF514 EZ-KIT, which can help optimize performance. Additionally, the company offers application notes and technical support to help engineers optimize their designs.
  • While the datasheet provides an overview of the peripherals, it's essential to review the ADSP-BF514 Peripheral Reference Manual for detailed information on the limitations and constraints of each peripheral. For example, the UART has a maximum baud rate of 3.6864 Mbps, and the SPI interface has a maximum clock frequency of 25 MHz.
  • Analog Devices provides a range of booting options, including booting from flash, UART, and SPI. To ensure reliable booting and firmware updates, it's essential to follow the guidelines in the ADSP-BF514 Booting and Firmware Update Application Note. Additionally, the company offers a firmware update tool and technical support to help with this process.
  • The ADSP-BF514KSWZ-4 has a range of power management options, including dynamic voltage and frequency scaling, as well as multiple power-down modes. The power consumption varies depending on the operating frequency, voltage, and peripherals used. Refer to the ADSP-BF514 Power Management Application Note for detailed information on power consumption and management options.
