ADSP-BF526KBCZ-3 - Analog Devices

ADSP-BF526KBCZ-3 Details

• Manufacturer Part Number:

  ADSP-BF526KBCZ-3

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

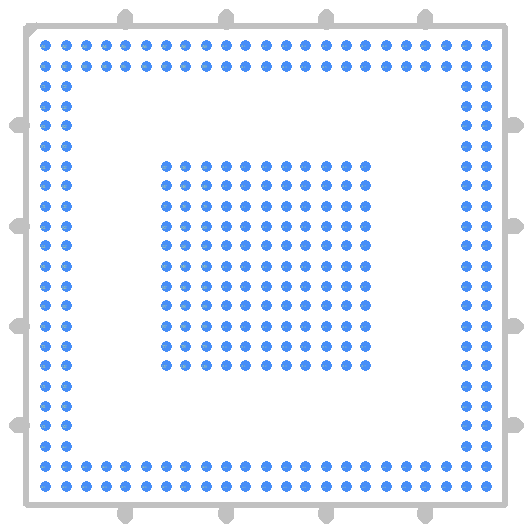

• Part Package Code:

  BGA

• Package Description:

  ROHS COMPLIANT, MO-275GGCE-1, CSPBGA-289

• Pin Count:

  289

• Manufacturer Package Code:

  BC-289-2

• Country Of Origin:

  Singapore

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  10

• Address Bus Width:

  19

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  50 MHz

• External Data Bus Width:

  16

• Format:

  FIXED POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B289

• JESD-609 Code:

  e1

• Length:

  12 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  289

• Operating Temperature-Max:

  70 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFBGA

• Package Equivalence Code:

  BGA289,23X23,20

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY, LOW PROFILE, FINE PITCH

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  1.4 mm

• Speed:

  300 MHz

• Supply Voltage-Max:

  1.9 V

• Supply Voltage-Min:

  1.7 V

• Supply Voltage-Nom:

  1.8 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  COMMERCIAL

• Terminal Finish:

  Tin/Silver/Copper (Sn/Ag/Cu)

• Terminal Form:

  BALL

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  BOTTOM

• Width:

  12 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
