ADSP-BF527BBCZ-5A - Analog Devices

Description: Analog Devices ADSP-BF527BBCZ-5A, 32bit SHARC Digital Signal Processor 133MHz ROMLess 208-Pin CSP BGA

Download ADSP-BF527BBCZ-5A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF527BBCZ-5A - Analog Devices - PCB symbol
click to zoom
PCB Footprints

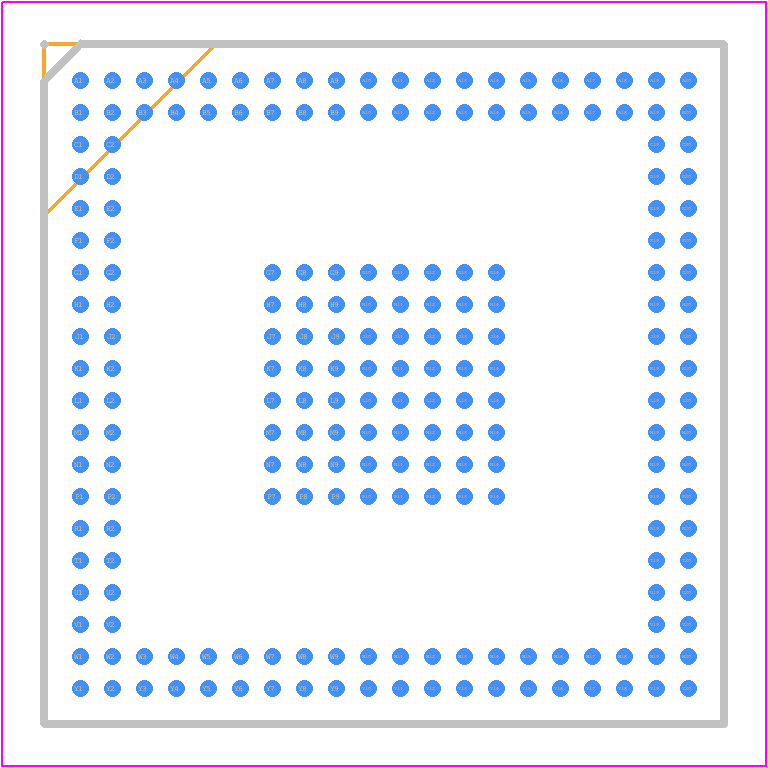

ADSP-BF527BBCZ-5A - Analog Devices PCB footprint - BGA - BGA - BC-208-2 (CSP_BGA)
click to zoom
3D Models
ADSP-BF527BBCZ-5A - Analog Devices - 3D model - BGA - BC-208-2 (CSP_BGA)
click to zoom

ADSP-BF527BBCZ-5A Details

  • Manufacturer Part Number:

    ADSP-BF527BBCZ-5A

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    ROHS COMPLIANT, MO-275MMAB-1, CSPBGA-208

  • Pin Count:

    208

  • Manufacturer Package Code:

    BC-208-2

  • Country Of Origin:

    Singapore

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    19

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    50 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B208

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    208

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    FBGA

  • Package Equivalence Code:

    BGA208,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Speed:

    533 MHz

  • Supply Voltage-Max:

    1.9 V

  • Supply Voltage-Min:

    1.7 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF527BBCZ-5A Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC simultaneously, followed by VDDPLL and VDDOSC. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes setting the clock frequency, configuring the cache, and optimizing the memory hierarchy. Consult the ADSP-BF527BBCZ-5A's software development kit (SDK) and application notes for guidance.
  • The ADSP-BF527BBCZ-5A has a maximum junction temperature of 125°C. Ensure proper heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB. Consult the datasheet and thermal management application notes for more information.
  • To ensure EMC, follow proper PCB design practices, such as using a solid ground plane, minimizing signal trace lengths, and using shielding and filtering as needed. Consult the ADSP-BF527BBCZ-5A's EMC application notes and relevant industry standards.
  • The ADSP-BF527BBCZ-5A is rated for industrial temperature range (-40°C to 85°C). For harsh environments, consider using conformal coating, potting, or hermetic packaging. Ensure the system is designed to withstand the environmental stresses, and consult the datasheet and relevant application notes.
