ADSP-BF542MBBCZ-5M - Analog Devices

Description: Blackfin Embedded Processor

Download ADSP-BF542MBBCZ-5M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF542MBBCZ-5M - Analog Devices - PCB symbol
click to zoom
PCB Footprints

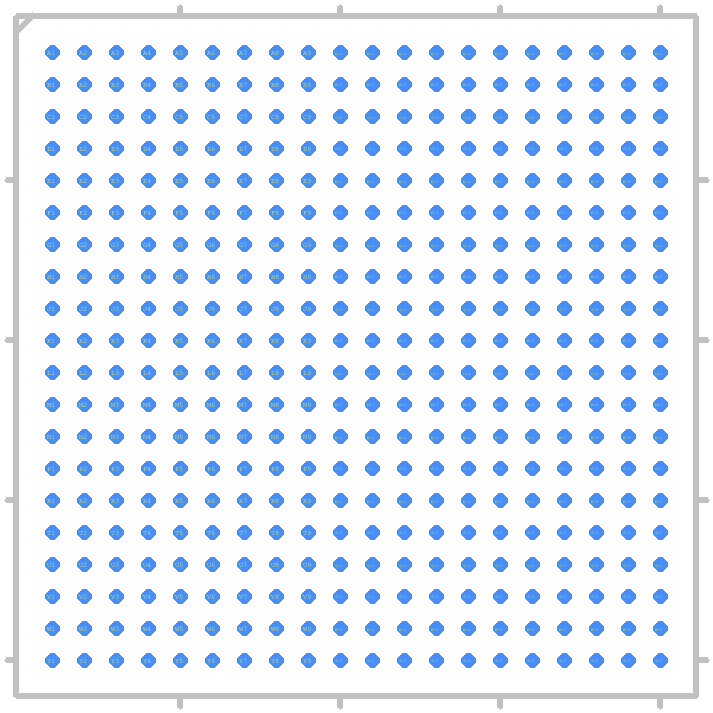

ADSP-BF542MBBCZ-5M - Analog Devices PCB footprint - Other - Other - BGA400C80P20X20_1700X1700X170
click to zoom
3D Models
ADSP-BF542MBBCZ-5M - Analog Devices - 3D model - Other - BGA400C80P20X20_1700X1700X170
click to zoom

ADSP-BF542MBBCZ-5M Details

  • Manufacturer Part Number:

    ADSP-BF542MBBCZ-5M

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    BGA

  • Package Description:

    17 X 17 MM, ROHS COMPLIANT, CSBGA-400

  • Pin Count:

    400

  • Manufacturer Package Code:

    BC-400-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Address Bus Width:

    22

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    50 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • JESD-609 Code:

    e1

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA400,20X20,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.7 mm

  • Speed:

    533 MHz

  • Supply Voltage-Max:

    1.43 V

  • Supply Voltage-Min:

    1.188 V

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF542MBBCZ-5M Frequently Asked Questions (FAQs)

  • Analog Devices provides a recommended PCB layout guide for the ADSP-BF542MBBCZ-5M, which includes guidelines for signal routing, power supply decoupling, and thermal management. It's essential to follow this guide to ensure optimal performance and minimize electromagnetic interference (EMI).
  • To optimize the boot process, ensure that the boot mode pins (BMODE[1:0]) are properly configured, and the boot memory is correctly initialized. Additionally, consider using a faster boot memory, such as a serial flash, and optimize the boot code to reduce startup time.
  • The ADSP-BF542MBBCZ-5M has a maximum junction temperature (TJ) of 125°C. To ensure reliable operation, it's essential to implement proper thermal management, including heat sinks, thermal interfaces, and airflow management. Analog Devices provides thermal modeling tools and guidelines to help with thermal design.
  • To ensure reliable communication over the SPI interface, ensure that the clock frequency is within the recommended range (up to 50 MHz), and the slave select signal is properly controlled. Additionally, use a suitable pull-up resistor value for the SPI bus, and consider using a SPI bus buffer or repeater for longer cable lengths.
  • The ADSP-BF542MBBCZ-5M requires a specific power sequencing order to ensure proper operation. The recommended power-up sequence is: VDDINT, VDDRTC, VDDPLL, and finally, VDDCORE. Ensure that the power supplies are properly decoupled, and the voltage rails are within the recommended operating range.
