ADSP-BF548BBCZ-5AA - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC 533 MHz Blackfin Embedded Processor

Download ADSP-BF548BBCZ-5AA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-BF548BBCZ-5AA - Analog Devices - PCB symbol
click to zoom
PCB Footprints

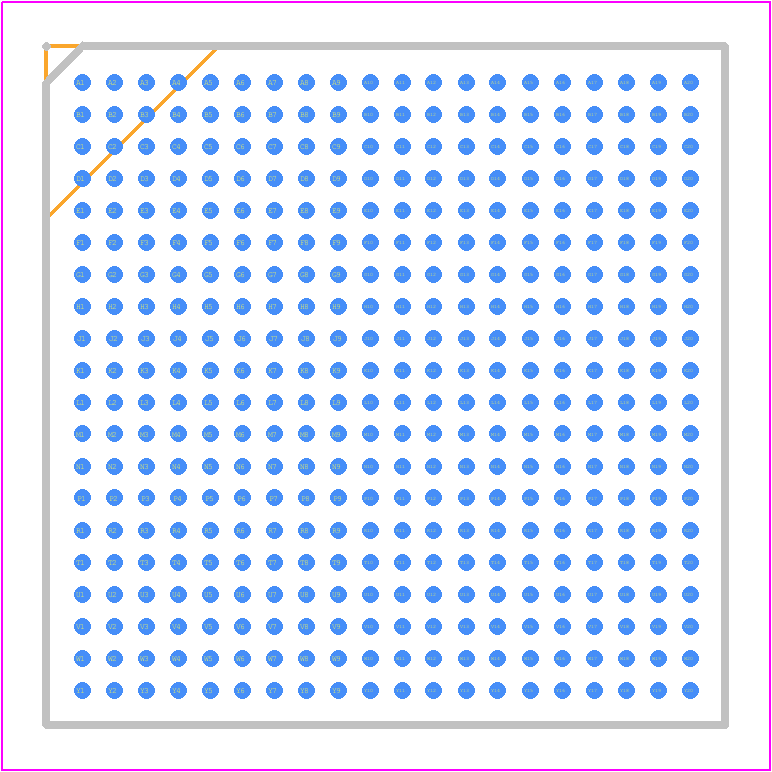

ADSP-BF548BBCZ-5AA - Analog Devices PCB footprint - BGA - BGA - BC-400-1
click to zoom
3D Models
ADSP-BF548BBCZ-5AA - Analog Devices - 3D model - BGA - BC-400-1
click to zoom

ADSP-BF548BBCZ-5AA Details

  • Manufacturer Part Number:

    ADSP-BF548BBCZ-5AA

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSBGA-400

  • Pin Count:

    400

  • Manufacturer Package Code:

    BC-400-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Address Bus Width:

    13

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    50 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PBGA-B400

  • Length:

    17 mm

  • Low Power Mode:

    YES

  • Number of Terminals:

    400

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Seated Height-Max:

    1.7 mm

  • Supply Voltage-Max:

    1.43 V

  • Supply Voltage-Min:

    1.188 V

  • Supply Voltage-Nom:

    1.25 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Width:

    17 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-BF548BBCZ-5AA Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDPLL simultaneously, followed by VDDRTC and VDDOSC. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • Optimizing performance involves understanding the specific requirements of your application and configuring the processor accordingly. This may involve adjusting clock frequencies, cache settings, and memory allocation. Consult the ADSP-BF548BBCZ-5AA manual and Analog Devices' application notes for guidance.
  • The ADSP-BF548BBCZ-5AA has a maximum junction temperature of 125°C. Ensure proper heat sinking and thermal management to prevent overheating. Consult the datasheet and thermal management guidelines for more information.
  • Follow proper PCB design and layout guidelines, use shielding and filtering as necessary, and ensure that the system meets relevant EMC standards (e.g., FCC, CE, CISPR). Consult the datasheet and Analog Devices' application notes for more information.
  • The ADSP-BF548BBCZ-5AA is rated for industrial temperature range (-40°C to 85°C). For harsh environments, consider using conformal coating, potting, or other environmental protection methods. Consult the datasheet and Analog Devices' application notes for more information.
