ADSP-BF561SBB600 - Analog Devices

ADSP-BF561SBB600 Details

• Manufacturer Part Number:

  ADSP-BF561SBB600

• Source Url Status Check Date:

  2013-05-01 14:56:49.09

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Part Life Cycle Code:

  Obsolete

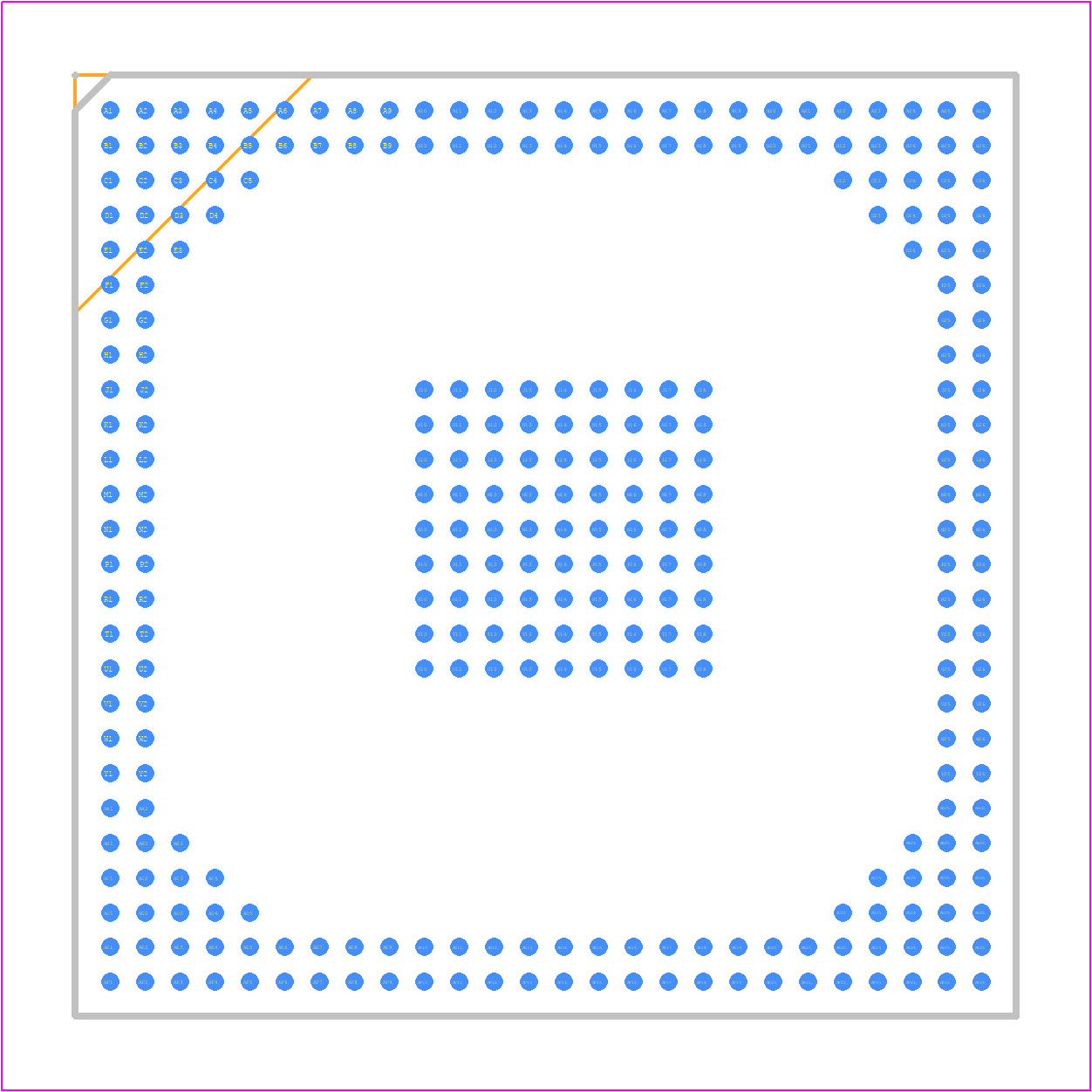

• Part Package Code:

  BGA

• Package Description:

  PLASTIC, MS-0340AAL-1, BGA-297

• Pin Count:

  297

• Manufacturer Package Code:

  B-297

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.35

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Additional Feature:

  ALSO OPERATES AT 2.5 OR 3.3 V NOMINAL SUPPLY

• Address Bus Width:

  23

• Barrel Shifter:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• Clock Frequency-Max:

  600 MHz

• External Data Bus Width:

  32

• Format:

  FIXED POINT

• Internal Bus Architecture:

  MULTIPLE

• JESD-30 Code:

  S-PBGA-B297

• JESD-609 Code:

  e0

• Length:

  27 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of Terminals:

  297

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  BGA

• Package Equivalence Code:

  BGA297,26X26,40

• Package Shape:

  SQUARE

• Package Style:

  GRID ARRAY

• Peak Reflow Temperature (Cel):

  225

• Qualification Status:

  Not Qualified

• Seated Height-Max:

  2.43 mm

• Speed:

  600 MHz

• Supply Voltage-Max:

  1.4185 V

• Supply Voltage-Min:

  0.8 V

• Supply Voltage-Nom:

  1.35 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin/Lead/Silver (Sn/Pb/Ag)

• Terminal Form:

  BALL

• Terminal Pitch:

  1 mm

• Terminal Position:

  BOTTOM

• Time@Peak Reflow Temperature-Max (s):

  30

• Width:

  27 mm

• uPs/uCs/Peripheral ICs Type:

  DIGITAL SIGNAL PROCESSOR, OTHER
