ADSP-SC570CSWZ-42 - Analog Devices

Description: Single-core SHARC+ (w/384KB L1), arm® Cortex-A5, 1MB Shared L2, 10/100 Ethernet, 176-LQFP

Download ADSP-SC570CSWZ-42 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC570CSWZ-42 - Analog Devices - PCB symbol
click to zoom
PCB Footprints

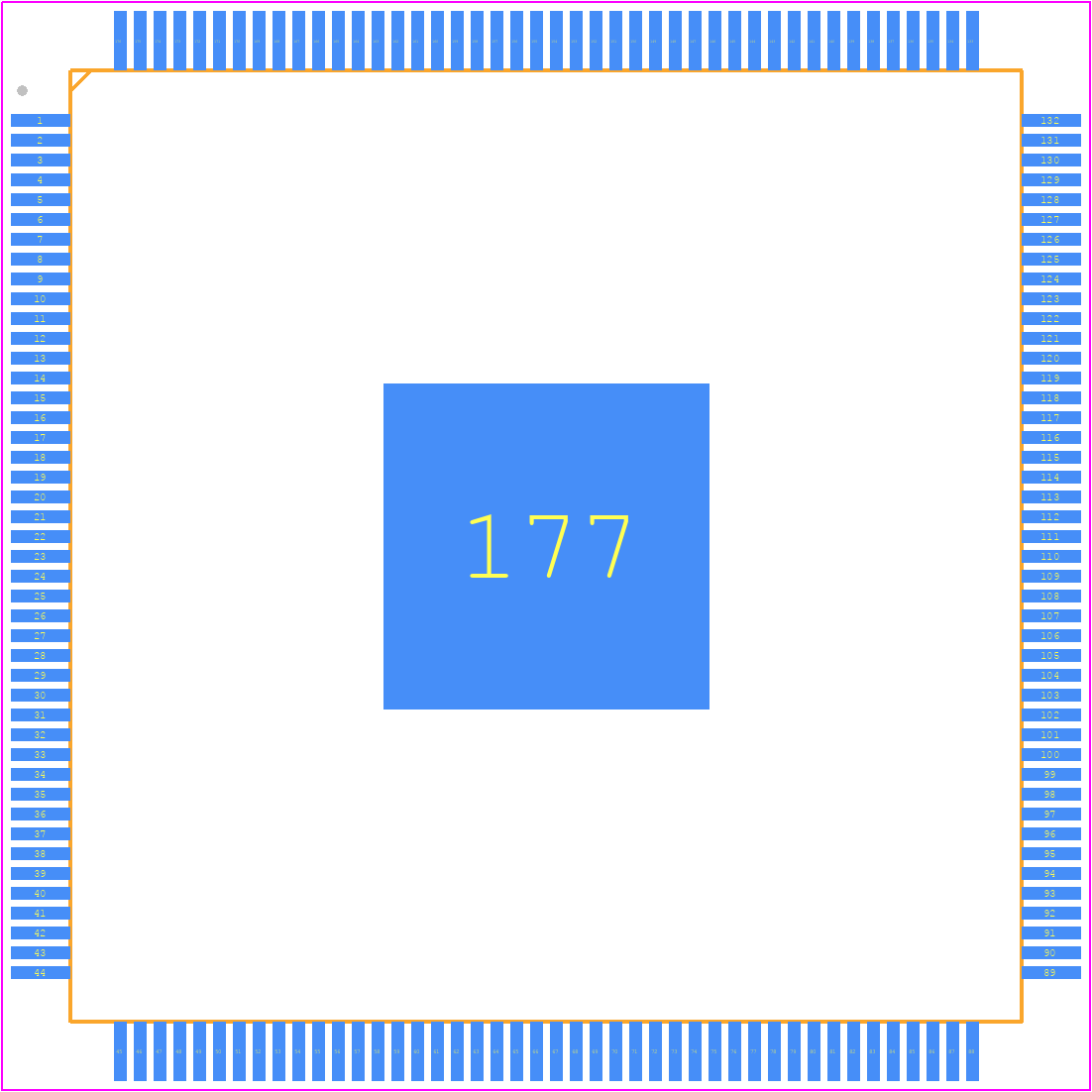

ADSP-SC570CSWZ-42 - Analog Devices PCB footprint - Quad Flat Packages - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD-2
click to zoom
3D Models
ADSP-SC570CSWZ-42 - Analog Devices - 3D model - Quad Flat Packages - LQFP 1.4 MM W/ THERMAL PAD-2
click to zoom

ADSP-SC570CSWZ-42 Details

  • Manufacturer Part Number:

    ADSP-SC570CSWZ-42

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    176

  • Manufacturer Package Code:

    SW-176-5

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Address Bus Width:

    16

  • Barrel Shifter:

    YES

  • Bit Size:

    32

  • Boundary Scan:

    YES

  • Clock Frequency-Max:

    33 MHz

  • External Data Bus Width:

    16

  • Format:

    FIXED POINT

  • Internal Bus Architecture:

    MULTIPLE

  • JESD-30 Code:

    S-PQFP-G176

  • JESD-609 Code:

    e3

  • Length:

    24 mm

  • Low Power Mode:

    YES

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    176

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HLFQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.6 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    24 mm

  • uPs/uCs/Peripheral ICs Type:

    DIGITAL SIGNAL PROCESSOR, OTHER

ADSP-SC570CSWZ-42 Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDINT and VDDRTC first, followed by VDDDSP and VDDIO. This ensures that the internal voltage regulators are powered up before the core and I/Os.
  • Optimizing performance requires understanding the application's requirements and configuring the processor accordingly. This includes selecting the appropriate clock frequency, cache settings, and memory allocation. Additionally, using the processor's built-in performance counters and profiling tools can help identify bottlenecks and optimize code.
  • The maximum operating temperature range for the ADSP-SC570 is -40°C to 85°C. However, it's essential to ensure that the device is properly cooled and that the thermal design of the system is adequate to prevent overheating.
  • The ADSP-SC570 is not radiation-hardened and is not suitable for use in high-radiation environments. If radiation hardness is required, a different processor should be selected.
  • Ensuring EMC requires following proper design and layout guidelines, such as using a solid ground plane, minimizing signal loop areas, and using shielding and filtering as necessary. Additionally, the ADSP-SC570 has built-in features such as spread spectrum clocking and adjustable drive strength to help reduce electromagnetic emissions.
