ADSP-SC582KBCZ-4A - Analog Devices

Description: Single-core SHARC+ and ARM Cortex-A5 SOC, DDR, Ethernet, USB, 349-cspBGA

Download ADSP-SC582KBCZ-4A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC582KBCZ-4A - Analog Devices - PCB symbol
click to zoom
PCB Footprints

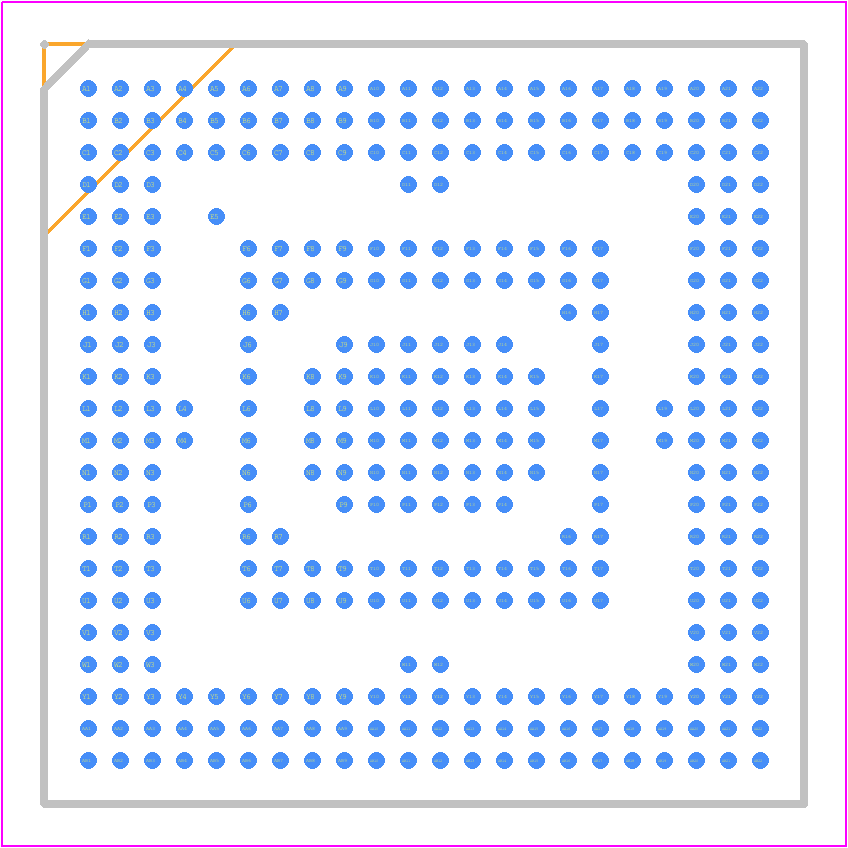

ADSP-SC582KBCZ-4A - Analog Devices PCB footprint - BGA - BGA - BC-349-1
click to zoom
3D Models
ADSP-SC582KBCZ-4A - Analog Devices - 3D model - BGA - BC-349-1
click to zoom

ADSP-SC582KBCZ-4A Details

  • Manufacturer Part Number:

    ADSP-SC582KBCZ-4A

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-349

  • Pin Count:

    349

  • Manufacturer Package Code:

    BC-349-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; UART

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B349

  • JESD-609 Code:

    e1

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    349

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, FLOATING POINT PROCESSOR

ADSP-SC582KBCZ-4A Frequently Asked Questions (FAQs)

  • Analog Devices provides a reference design and layout guidelines in the ADSP-SC58x/ADSP-2158x Hardware Reference Manual (UG-1107) and the ADSP-SC58x/ADSP-2158x Layout Guidelines (UG-1108). Additionally, thermal management is critical, and engineers should follow the guidelines for heat sink design and thermal interface material selection.
  • To optimize power consumption, engineers should use the power management features of the processor, such as dynamic voltage and frequency scaling, and configure the processor to run at the lowest possible frequency and voltage required for the application. Additionally, using the low-power modes, such as sleep and idle modes, can help reduce power consumption.
  • Engineers should follow the guidelines for EMI and EMC in the ADSP-SC58x/ADSP-2158x Hardware Reference Manual (UG-1107) and the ADSP-SC58x/ADSP-2158x Layout Guidelines (UG-1108). This includes using shielding, filtering, and grounding techniques to minimize EMI and ensure EMC compliance.
  • Engineers should follow the guidelines for reliability and fault tolerance in the ADSP-SC58x/ADSP-2158x Hardware Reference Manual (UG-1107) and the ADSP-SC58x/ADSP-2158x Layout Guidelines (UG-1108). This includes using error correction mechanisms, such as ECC memory, and implementing fault detection and recovery mechanisms, such as watchdog timers and reset circuits.
  • Engineers should follow the guidelines for security and secure boot in the ADSP-SC58x/ADSP-2158x Hardware Reference Manual (UG-1107) and the ADSP-SC58x/ADSP-2158x Security Reference Manual (UG-1110). This includes using secure boot mechanisms, such as encrypted boot code and secure key storage, and implementing security protocols, such as secure communication protocols and secure data storage.
