ADSP-SC584BBCZ-4A - Analog Devices

Description: Dual-core SHARC+ and Arm Cortex-A5 SOC, DDR, Ethernet, USB, 349-cspBGA

Download ADSP-SC584BBCZ-4A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC584BBCZ-4A - Analog Devices - PCB symbol
click to zoom
PCB Footprints

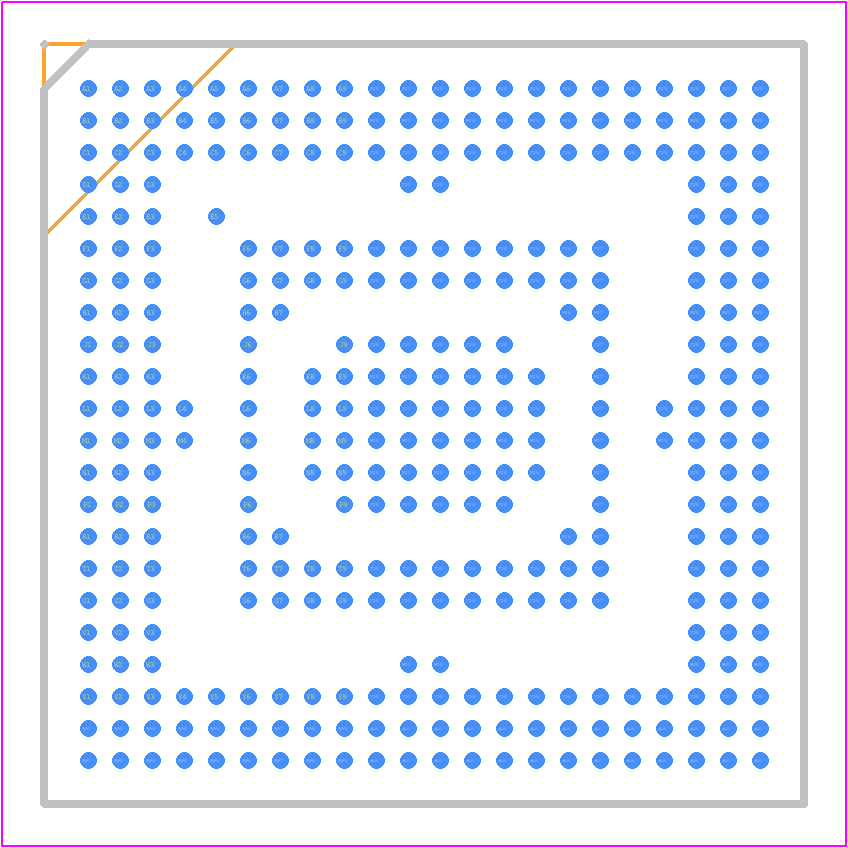

ADSP-SC584BBCZ-4A - Analog Devices PCB footprint - BGA - BGA - BC-349-1
click to zoom
3D Models
ADSP-SC584BBCZ-4A - Analog Devices - 3D model - BGA - BC-349-1
click to zoom

ADSP-SC584BBCZ-4A Details

  • Manufacturer Part Number:

    ADSP-SC584BBCZ-4A

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-349

  • Pin Count:

    349

  • Manufacturer Package Code:

    BC-349-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2016-10-12

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; UART

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B349

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    349

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, FLOATING POINT PROCESSOR

ADSP-SC584BBCZ-4A Frequently Asked Questions (FAQs)

  • Analog Devices provides a reference design and layout guidelines in the ADSP-SC58x/ADSP-2158x Hardware Reference Manual (UG-1107) and the ADSP-SC58x/ADSP-2158x Layout Guidelines (UG-1108). Additionally, thermal management is critical, and a heat sink or thermal interface material is recommended to keep the junction temperature below 125°C.
  • Optimization techniques include using the Dynamic Voltage and Frequency Scaling (DVFS) feature, reducing clock frequencies, using low-power modes, and optimizing software algorithms. The ADSP-SC58x/ADSP-2158x Processor Programming Reference (UG-1105) provides more information on these techniques.
  • The ADSP-SC584BBCZ-4A is not designed for high-reliability or safety-critical applications. However, Analog Devices provides a range of safety manuals and guidelines, such as the ADSP-SC58x/ADSP-2158x Safety Manual (UG-1110), that can help engineers design and implement safety-critical systems using this processor.
  • Analog Devices provides guidelines for EMC and EMI compliance in the ADSP-SC58x/ADSP-2158x EMC/EMI Guidelines (UG-1109). Additionally, engineers should follow good design practices, such as using shielding, filtering, and grounding, to minimize electromagnetic emissions and susceptibility.
  • Analog Devices provides a range of development tools, including the CrossCore Embedded Studio (CCES) development environment, the ADSP-SC58x/ADSP-2158x Evaluation Kit, and the ADSP-SC58x/ADSP-2158x Software Development Kit (SDK). Additionally, third-party software frameworks, such as Linux and Android, are also available.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-SC584BBCZ-4A Overview

Use the download button to access the ADSP-SC584BBCZ-4A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
