ADSP-SC584BBCZ-5A - Analog Devices

Description: Dual-core SHARC+ and Arm Cortex-A5 SOC, DDR, Ethernet, USB, 349-cspBGA

Download ADSP-SC584BBCZ-5A Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC584BBCZ-5A - Analog Devices - PCB symbol
click to zoom
PCB Footprints

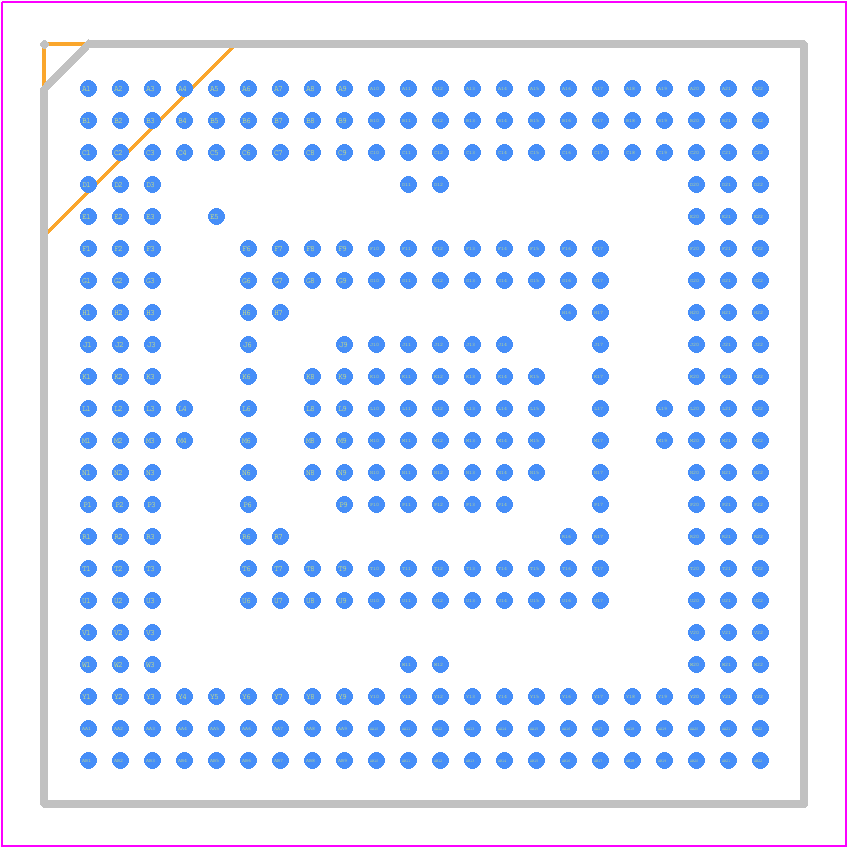

ADSP-SC584BBCZ-5A - Analog Devices PCB footprint - BGA - BGA - ADSP(BC-349-1)
click to zoom
3D Models
ADSP-SC584BBCZ-5A - Analog Devices - 3D model - BGA - ADSP(BC-349-1)
click to zoom

ADSP-SC584BBCZ-5A Details

  • Manufacturer Part Number:

    ADSP-SC584BBCZ-5A

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-349

  • Pin Count:

    349

  • Manufacturer Package Code:

    BC-349-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2017-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; UART

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B349

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    349

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, FLOATING POINT PROCESSOR

ADSP-SC584BBCZ-5A Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VDDCORE and VDDRTC simultaneously, followed by VDDPLL and VDDOSC. This ensures proper power-up and minimizes the risk of latch-up or other damage.
  • To optimize performance, consider the following: 1) Optimize the clock frequency and voltage settings for your application. 2) Use the cache and DMA controllers to minimize memory access latency. 3) Utilize the processor's parallel processing capabilities. 4) Consider using the processor's low-power modes to reduce power consumption.
  • The ADSP-SC584BBCZ-5A has a maximum junction temperature of 125°C. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to dissipate heat. Monitor the device's temperature using the on-chip temperature sensor and adjust the system design accordingly.
  • To ensure EMC, follow these guidelines: 1) Use a shielded enclosure to minimize electromagnetic radiation. 2) Implement proper grounding and shielding of cables and connectors. 3) Use EMI filters and ferrite beads to reduce electromagnetic interference. 4) Ensure that the system design meets relevant EMC standards and regulations.
  • When using the ADSP-SC584BBCZ-5A in a harsh environment, consider the following: 1) Temperature: ensure the device operates within the specified temperature range. 2) Humidity: ensure the device is protected from moisture and condensation. 3) Vibration: ensure the device is properly secured and protected from mechanical shock. 4) Electromagnetic interference: ensure the device is properly shielded and filtered.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-SC584BBCZ-5A Overview

Use the download button to access the ADSP-SC584BBCZ-5A schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
