ADSP-SC587BBCZ-5B - Analog Devices

Description: Dual-core SHARC+ and ARM Cortex-A5 SOC, dual DDR, 2xEthernet, 2xUSB, SDIO, 529-cspBGA

Download ADSP-SC587BBCZ-5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC587BBCZ-5B - Analog Devices - PCB symbol
click to zoom
PCB Footprints

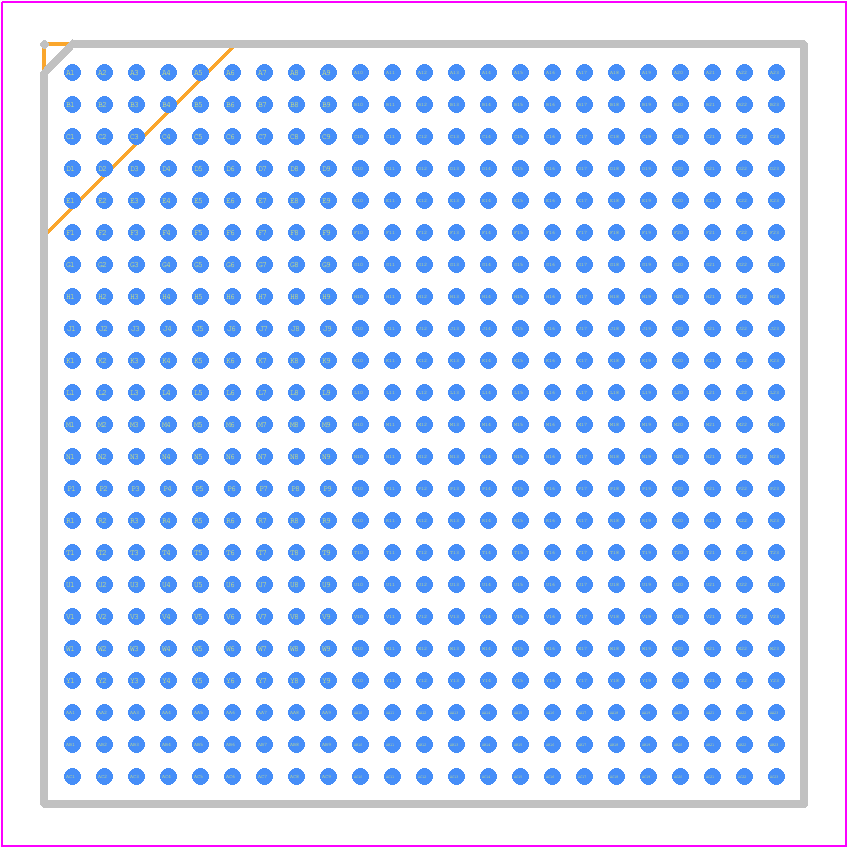

ADSP-SC587BBCZ-5B - Analog Devices PCB footprint - BGA - BGA - BC-529-1
click to zoom
3D Models
ADSP-SC587BBCZ-5B - Analog Devices - 3D model - BGA - BC-529-1
click to zoom

ADSP-SC587BBCZ-5B Details

  • Manufacturer Part Number:

    ADSP-SC587BBCZ-5B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-349

  • Pin Count:

    529

  • Manufacturer Package Code:

    BC-529-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2017-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; UART

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B349

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    349

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, FLOATING POINT PROCESSOR

ADSP-SC587BBCZ-5B Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply power to the core voltage (VDDINT) first, followed by the I/O voltage (VDDIO). This ensures that the internal voltage regulators are powered up correctly.
  • To optimize performance, consider the following: (1) use the highest possible clock frequency, (2) optimize memory access patterns, (3) use the cache effectively, and (4) minimize the number of context switches. Additionally, use the ADSP-SC587BBCZ-5B's built-in performance counters to identify bottlenecks.
  • The ADSP-SC587BBCZ-5B has a maximum junction temperature of 125°C. Ensure good airflow around the device, use a heat sink if necessary, and avoid blocking the thermal pads on the package. Also, consider using thermal interface materials to improve heat transfer.
  • To ensure EMC, follow these guidelines: (1) use a shielded enclosure, (2) keep signal lines short and away from noise sources, (3) use decoupling capacitors, (4) avoid running signal lines near the device's clock lines, and (5) follow the recommended PCB layout guidelines.
  • In harsh environments, consider the following: (1) temperature range, (2) humidity, (3) vibration, and (4) radiation. Ensure the device is properly packaged and sealed, and consider using conformal coatings or potting compounds to protect the device.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADSP-SC587BBCZ-5B Overview

Use the download button to access the ADSP-SC587BBCZ-5B schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADSP-, or try a keyword search, such as Other uPs/uCs/Peripheral ICs

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
