ADSP-SC587KBCZ-5B - Analog Devices

Description: Digital Signal Processors & Controllers - DSP, DSC ARM, 2xSHARC, dual DDR, HPC package

Download ADSP-SC587KBCZ-5B Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ADSP-SC587KBCZ-5B - Analog Devices - PCB symbol
click to zoom
PCB Footprints

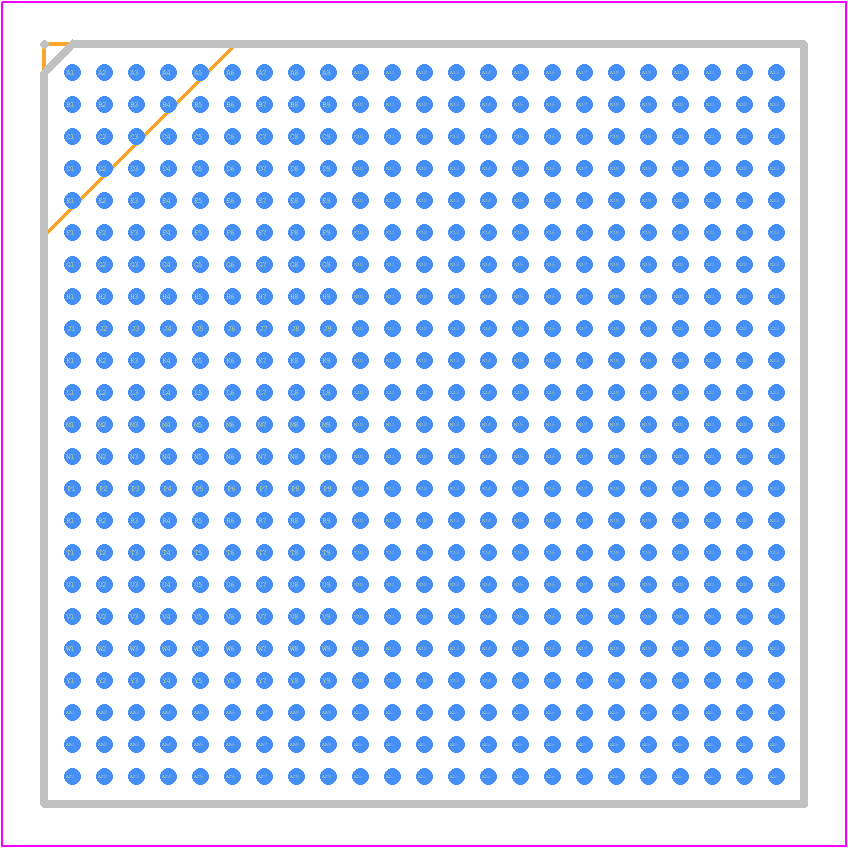

ADSP-SC587KBCZ-5B - Analog Devices PCB footprint - BGA - BGA - BC-529-1
click to zoom
3D Models
ADSP-SC587KBCZ-5B - Analog Devices - 3D model - BGA - BC-529-1
click to zoom

ADSP-SC587KBCZ-5B Details

  • Manufacturer Part Number:

    ADSP-SC587KBCZ-5B

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CSPBGA-349

  • Pin Count:

    529

  • Manufacturer Package Code:

    BC-529-1

  • Country Of Origin:

    South Korea

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2017-09-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Bus Compatibility:

    SPI; UART

  • Clock Frequency-Max:

    500 MHz

  • JESD-30 Code:

    S-PBGA-B349

  • Length:

    19 mm

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    349

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LFBGA

  • Package Equivalence Code:

    BGA529,23X23,32

  • Package Shape:

    SQUARE

  • Package Style:

    GRID ARRAY, LOW PROFILE, FINE PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.5 mm

  • Supply Voltage-Max:

    1.15 V

  • Supply Voltage-Min:

    1.05 V

  • Supply Voltage-Nom:

    1.1 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    BOTTOM

  • Width:

    19 mm

  • uPs/uCs/Peripheral ICs Type:

    DSP PERIPHERAL, FLOATING POINT PROCESSOR

ADSP-SC587KBCZ-5B Frequently Asked Questions (FAQs)

  • Analog Devices provides a reference design and layout guidelines in the ADSP-SC587 Hardware Design Guide (UG-1469) and the ADSP-SC587 Thermal Design Guide (UG-1470). These guides provide detailed information on PCB layout, thermal management, and heat sink design to ensure optimal performance and reliability.
  • The ADSP-SC587 has various power-saving features such as dynamic voltage and frequency scaling, idle modes, and power gating. Analog Devices provides a Power Management Guide (UG-1471) that explains how to use these features to optimize power consumption. Additionally, the ADSP-SC587 Software Development Kit (SDK) provides examples and tools to help optimize power consumption in your application.
  • The ADSP-SC587KBCZ-5B has an industrial temperature range of -40°C to 125°C. Operating the device outside of this range can affect its performance, reliability, and lifespan. Analog Devices provides thermal performance data and derating guidelines in the datasheet and the ADSP-SC587 Thermal Design Guide (UG-1470) to help you design your system for optimal performance and reliability.
  • Analog Devices provides guidelines and recommendations for EMC and EMI compliance in the ADSP-SC587 EMC and EMI Design Guide (UG-1472). This guide covers topics such as PCB layout, shielding, filtering, and grounding to help you design a compliant system. Additionally, Analog Devices offers EMC and EMI testing and certification services to help you ensure compliance with relevant standards and regulations.
  • The ADSP-SC587 has multiple clock domains and synchronization requirements. Analog Devices provides a Clocking and Synchronization Guide (UG-1473) that explains the recommended clocking and synchronization strategy for the device. This guide covers topics such as clock source selection, clock distribution, and synchronization techniques to ensure optimal performance and reliability.
