ADT1-1WT - Mini-Circuits

Description: RF Transformer

Download ADT1-1WT Model

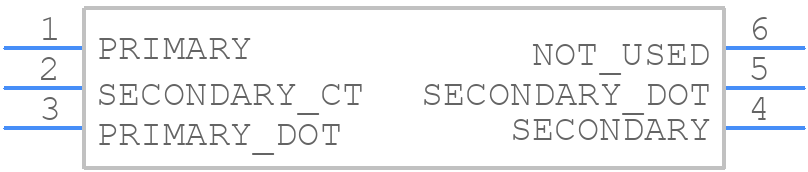

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
ADT1-1WT - Mini-Circuits PCB footprint - Other - Other - ADT1-1WT-1
click to zoom
3D Models
ADT1-1WT - Mini-Circuits  - 3D model - Other - ADT1-1WT-1
click to zoom

ADT1-1WT Details

  • Manufacturer Part Number:

    ADT1-1WT

  • Pbfree Code:

    No

  • Part Life Cycle Code:

    End Of Life

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    0

  • Additional Feature:

    OHMS RATIO IS 1

  • Application:

    MATCHING

  • Cut-off Frequency-Max:

    800 MHz

  • Cut-off Frequency-Min:

    0.4 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    2.84 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e0

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    800000 kHz

  • Operating Frequency-Min:

    400 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Output Current 1:

    0.03 A

  • Power Rating:

    0.5 W

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Lead (Sn/Pb)

  • Transformer Type:

    RF TRANSFORMER

  • Width:

    5.59 mm

ADT1-1WT Frequently Asked Questions (FAQs)

  • Mini-Circuits provides a recommended PCB layout and footprint in their application notes. It's essential to follow these guidelines to ensure optimal performance and minimize parasitic effects.
  • The ADT1-1WT has a nominal impedance of 50 ohms. To impedance match, use a pi-network or a T-network topology with resistors and capacitors. You can use online impedance matching tools or consult with a RF engineer for assistance.
  • The ADT1-1WT can handle up to 1W of continuous power. However, it's recommended to derate the power handling based on the operating frequency, temperature, and other environmental factors to ensure reliable operation.
  • Yes, the ADT1-1WT is designed for high-reliability applications and is suitable for use in space-constrained environments. However, it's essential to follow proper assembly and testing procedures to ensure the device meets the required specifications.
  • To troubleshoot issues, start by verifying the device is properly soldered and the PCB layout is correct. Then, use a signal generator and a spectrum analyzer to test the device's frequency response and identify any anomalies. Consult the datasheet and application notes for additional guidance.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT1-1WT Overview

Use the download button to access the ADT1-1WT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT1-, or try a keyword search, such as RF Transformers

About Mini-Circuits

Mini-Circuits is a global leader in the design, manufacturing, and distribution of RF and microwave components and systems. The company's product portfolio includes a vast array of components such as amplifiers, mixers, splitters, couplers, filters, switches, and attenuators, among others. These components cover frequency ranges from DC to 65 GHz and beyond, serving applications in wireless communication, satellite communication, radar systems, test and measurement equipment, medical devices, and more.
