ADT4-6T+ - Mini-Circuits

Description: Audio Transformers / Signal Transformers RF XFMR / SURF MOUNT / RoHS

Download ADT4-6T+ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

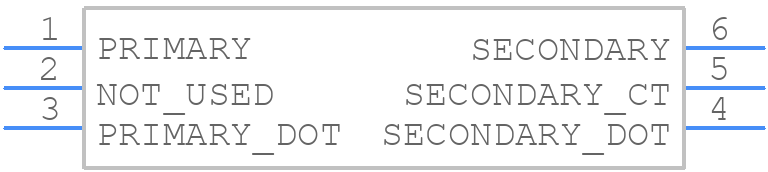

ADT4-6T+ - Mini-Circuits - PCB symbol
click to zoom
PCB Footprints
ADT4-6T+ - Mini-Circuits PCB footprint - Other - Other - ADT4-6T+-3
click to zoom
3D Models
ADT4-6T+ - Mini-Circuits - 3D model - Other - ADT4-6T+-3
click to zoom

ADT4-6T+ Details

  • Manufacturer Part Number:

    ADT4-6T+

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    Indonesia

  • ECCN Code:

    EAR99

  • Manufacturer:

    Mini-Circuits

  • YTEOL:

    7

  • Additional Feature:

    OHMS RATIO IS 4, HEIGHT DIMENSION INCLUDES TERMINALS ALSO

  • Application:

    POWER

  • Cut-off Frequency-Max:

    300 MHz

  • Cut-off Frequency-Min:

    0.06 MHz

  • DC Unbalance Current-Max:

    30 mA

  • Height:

    5.23 mm

  • Insertion Loss:

    3 dB

  • JESD-609 Code:

    e3

  • Length:

    7.87 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    300000 kHz

  • Operating Frequency-Min:

    60 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    TAPE & REEL

  • Power Rating:

    0.25 W

  • Surface Mount:

    YES

  • Terminal Finish:

    TIN OVER NICKEL

  • Transformer Type:

    RF TRANSFORMER

  • Turns Ratio (Np:Ns):

    1:2

  • Width:

    5.59 mm
