ADT7320UCPZ-RL7 - Analog Devices

Description: Board Mount Temperature Sensors .25 Deg C Accurate 16-Bit Digital SPI

Download ADT7320UCPZ-RL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

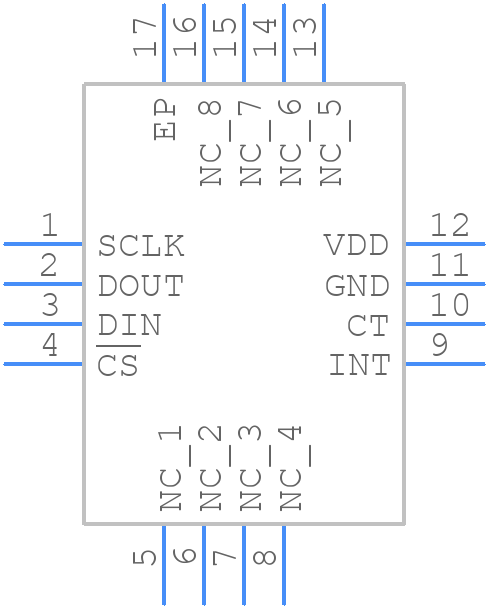

ADT7320UCPZ-RL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7320UCPZ-RL7 - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - ADT7320UCPZ-RL7
click to zoom
3D Models
ADT7320UCPZ-RL7 - Analog Devices - 3D model - Quad Flat No-Lead - ADT7320UCPZ-RL7
click to zoom

ADT7320UCPZ-RL7 Details

  • Manufacturer Part Number:

    ADT7320UCPZ-RL7

  • Source Url Status Check Date:

    2013-05-01 14:56:49.263

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN

  • Package Description:

    LFCSP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    CP-16-17

  • Country Of Origin:

    South Korea

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Accuracy-Max (Cel):

    0.66 Cel

  • Body Breadth:

    4 mm

  • Body Height:

    0.75 mm

  • Body Length or Diameter:

    4 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Output Voltage-Max:

    3 V

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    LCC16,.16SQ,25

  • Package Shape/Style:

    SQUARE

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ADT7320UCPZ-RL7 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to ensure good heat dissipation.
  • The device has an internal calibration mechanism. However, for high-accuracy applications, external calibration using a precision temperature source and a multimeter is recommended.
  • The maximum allowable thermal resistance for the TIM is 0.2°C-in²/W. A lower thermal resistance ensures better heat dissipation and accuracy.
  • Yes, the device is designed to operate in high-vibration environments. However, it's essential to ensure the device is properly mounted and secured to prevent mechanical stress and damage.
  • Use proper shielding, grounding, and filtering techniques to minimize EMI and RFI. Ensure the device is placed in a shielded enclosure, and use twisted-pair cables for signal transmission.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT7320UCPZ-RL7 Overview

Use the download button to access the ADT7320UCPZ-RL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT73, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
