ADT7410TRZ-REEL7 - Analog Devices

Description: I2C Temperature Sensor

Download ADT7410TRZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

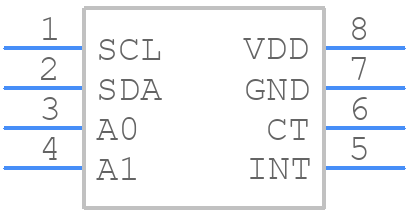

Symbol
ADT7410TRZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7410TRZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - R-8 (SOIC)
click to zoom
3D Models
ADT7410TRZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - R-8 (SOIC)
click to zoom

ADT7410TRZ-REEL7 Details

  • Manufacturer Part Number:

    ADT7410TRZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    R-8

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    1 Cel

  • Body Breadth:

    3.9 mm

  • Body Height:

    1.375 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    16

  • Number of Terminals:

    8

  • Operating Current-Max:

    0.3 mA

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Interface Type:

    I2C INTERFACE

  • Output Voltage-Max:

    2.31 V

  • Output Voltage-Min:

    0.4 V

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ADT7410TRZ-REEL7 Frequently Asked Questions (FAQs)

  • A good PCB layout for the ADT7410TRZ-REEL7 involves placing the device near the thermal center of the board, using a solid ground plane, and minimizing thermal barriers such as vias and thermal reliefs.
  • Calibration involves applying a known temperature to the device and measuring the output voltage. The device can be calibrated using a two-point calibration method, where the output voltage is measured at two known temperatures (e.g., 0°C and 100°C).
  • The recommended power-up sequence is to apply VDD first, followed by VLOGIC. This ensures that the internal voltage regulators are powered up correctly and prevents any potential latch-up conditions.
  • To minimize EMI, use a shielded cable for the I2C bus, keep the device away from high-frequency sources, and use a low-pass filter on the VDD and VLOGIC pins. Additionally, ensure that the PCB layout is designed to minimize radiation and susceptibility to EMI.
  • The maximum cable length for the I2C bus depends on the specific application and the capacitance of the cable. As a general guideline, the maximum cable length is approximately 10 meters for a 400 pF/m cable.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT7410TRZ-REEL7 Overview

Use the download button to access the ADT7410TRZ-REEL7 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT74, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
