ADT7470ARQZ-REEL7 - Analog Devices

Description: Board Mount Temperature Sensors Blade Server Fan Monitor/Fan Controller

Download ADT7470ARQZ-REEL7 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

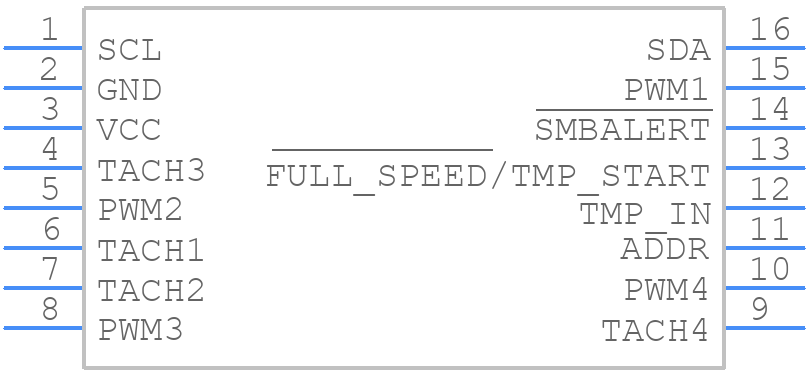

Symbol
ADT7470ARQZ-REEL7 - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7470ARQZ-REEL7 - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead QSOP
click to zoom
3D Models
ADT7470ARQZ-REEL7 - Analog Devices - 3D model - Small Outline Packages - 16-Lead QSOP
click to zoom

ADT7470ARQZ-REEL7 Details

  • Manufacturer Part Number:

    ADT7470ARQZ-REEL7

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Body Breadth:

    3.91 mm

  • Body Height:

    1.44 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    7

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.8 mA

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    I2C INTERFACE

  • Package Body Material:

    PLASTIC

  • Package Equivalence Code:

    SOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ADT7470ARQZ-REEL7 Frequently Asked Questions (FAQs)

  • The maximum operating temperature range for the ADT7470ARQZ-REEL7 is -40°C to +125°C.
  • To configure the ADT7470ARQZ-REEL7 for remote temperature sensing, connect the remote diode to the D+ and D- pins, and use the internal diode as a reference. Then, use the THERM pin to select the remote diode as the temperature sensing input.
  • The accuracy of the temperature measurement of the ADT7470ARQZ-REEL7 is ±1°C from -20°C to +100°C, and ±2°C from -40°C to -20°C and +100°C to +125°C.
  • Yes, the ADT7470ARQZ-REEL7 is suitable for high-reliability applications, such as aerospace, defense, and industrial control systems, due to its high accuracy, low power consumption, and wide operating temperature range.
  • The ADT7470ARQZ-REEL7 can be interfaced with a microcontroller using the I2C bus. The microcontroller can read the temperature data from the ADT7470ARQZ-REEL7 using the I2C bus, and then process the data accordingly.
