ADT7516ARQZ - Analog Devices

Description: ADT7516ARQZ, 12 bit Temperature Sensor ±3°C Serial-SPI 2.7 → 5.5 V 16-Pin QSOP

Download ADT7516ARQZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

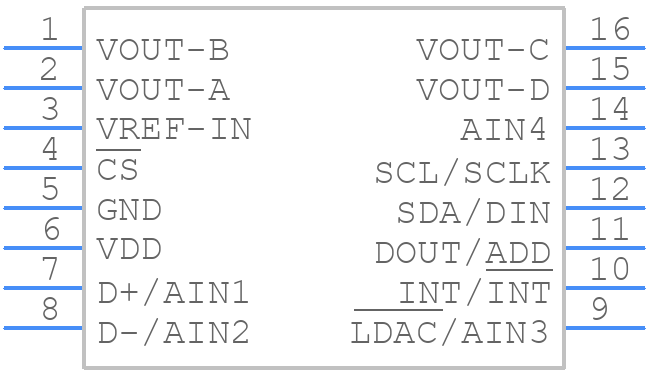

ADT7516ARQZ - Analog Devices - PCB symbol
click to zoom
PCB Footprints
ADT7516ARQZ - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - qsop 16
click to zoom
3D Models
ADT7516ARQZ - Analog Devices - 3D model - Small Outline Packages - qsop 16
click to zoom

ADT7516ARQZ Details

  • Manufacturer Part Number:

    ADT7516ARQZ

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, MO-137AB, QSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    RQ-16

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Accuracy-Max (Cel):

    16 Cel

  • Body Breadth:

    3.91 mm

  • Body Height:

    1.54 mm

  • Body Length or Diameter:

    4.9 mm

  • Housing:

    PLASTIC

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Bits:

    12

  • Number of Terminals:

    16

  • Operating Current-Max:

    0.001 mA

  • Operating Temperature-Max:

    120 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Interface Type:

    4-WIRE INTERFACE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SSOP16,.25

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    TEMPERATURE SENSOR,SWITCH/DIGITAL OUTPUT,SERIAL

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Termination Type:

    SOLDER

ADT7516ARQZ Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the ADT7516ARQZ involves placing the device close to the thermal zone, using a solid ground plane, and minimizing the distance between the device and the thermal zone. Additionally, it is recommended to use a 4-layer PCB with a dedicated ground plane and to avoid routing digital signals near the thermal zone.
  • The ADT7516ARQZ does not require calibration. It is a digital temperature sensor that provides a calibrated digital output. However, it is recommended to perform a one-time calibration during manufacturing to ensure accuracy.
  • The maximum cable length for the ADT7516ARQZ depends on the specific application and the type of cable used. However, as a general guideline, it is recommended to keep the cable length as short as possible (less than 10 inches) to minimize noise and ensure reliable operation.
  • Yes, the ADT7516ARQZ is designed to operate in high-vibration environments. However, it is recommended to ensure that the device is properly secured to the PCB and that the PCB is designed to withstand the vibration levels expected in the application.
  • The ADT7516ARQZ has built-in ESD protection, but it is still recommended to follow proper ESD handling procedures when handling the device. This includes using an ESD wrist strap, ESD mat, and ESD-safe packaging.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ADT7516ARQZ Overview

Use the download button to access the ADT7516ARQZ schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ADT75, or try a keyword search, such as Temperature Sensors

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
